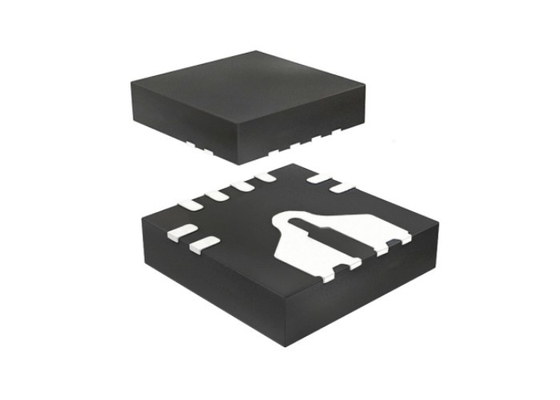

Current Sensor ACS711KEXLT-31AB-T 31A 1 Channel Hall Effect Open Loop Bidirectional

Current Sensor ACS711KEXLT-31AB-T 31A 1 Channel Hall Effect Open Loop Bidirectional

Product Description Of ACS711KEXLT-31AB-T

The ACS711KEXLT-31AB-T provides economical and precise solutions for AC or DC current sensing in <100 V audio, communications systems, and white goods. The device package allows for easy implementation by the customer. Typical applications include circuit protection, current monitoring, and motor and inverter control.

Specification Of ACS711KEXLT-31AB-T

Features Of ACS711KEXLT-31AB-T

• No external sense resistor required; single package solution
• Reduced power loss:
• 0.6 mΩ internal conductor resistance on EX package
• 1.2 mΩ internal conductor resistance on LC package
• Economical low- and high-side current sensing
• Output voltage proportional to AC or DC currents
• 12.5 A and ±25 A full-scale sensing ranges on LC package
• ±15.5 A and ±31 A full-scale sensing ranges on EX package
• Overcurrent trips and latches at 100% of full-scale current
• Low-noise analog signal path
• 100 kHz bandwidth
• Small footprint, low-profile SOIC8 and QFN packages
• 3 to 5.5 V single supply operation
• Integrated electrostatic shield for output stability
• Factory-trimmed for accuracy
• Extremely stable output offset voltage
• Zero magnetic hysteresis
• Ratiometric output from supply voltage

Packages Of ACS711KEXLT-31AB-T

Typical Application Of ACS711KEXLT-31AB-T
