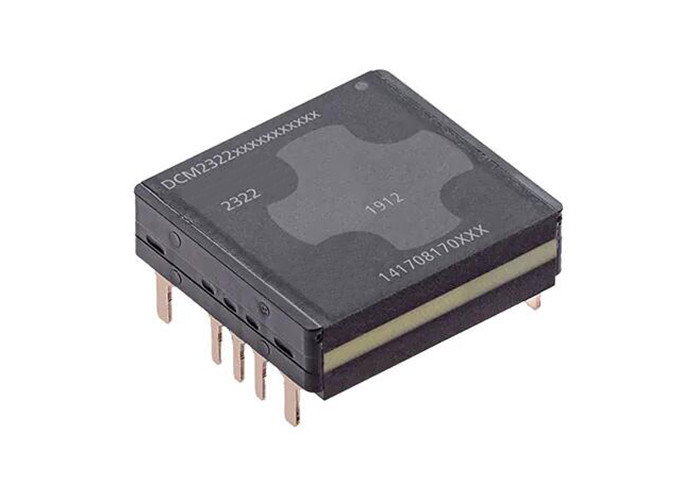

Integrated Circuit Chip DCM2322TA5N13A2T60 Isolated Module DC DC Converter 9-DIP Module

 Integrated Circuit Chip DCM2322TA5N13A2T60 Isolated Module DC DC Converter 9-DIP Module​

Product Description Of DCM2322TA5N13A2T60

DCM2322TA5N13A2T60 is a lower-power, isolated and regulated DC-DC converter that operates from an unregulated, wide-range input to generate an isolated 12.0VDC output. With its high-frequency zero-voltage switching (ZVS) topology, the DCM2322 converter consistently delivers high efficiency across the input line range.

Specification Of DCM2322TA5N13A2T60

Features Of DCM2322TA5N13A2T60

• Isolated, regulated DC-DC converter
• Up to 120W, 10.00A continuous
• 90.4% peak efficiency
• 481W/in3 power density
• Wide input range 43 – 154VDC
• Safety Extra Low Voltage (SELV) 12.0V nominal output
• 3000VDC isolation
• ZVS high-frequency switching
• Standalone 120W
• Fully operational current limit
• OV, OC, UV, short circuit and thermal shut down

Typical Applications Of DCM2322TA5N13A2T60

• Rail Transportation
• Defense / Aerospace
• Industrial
• Process Control
