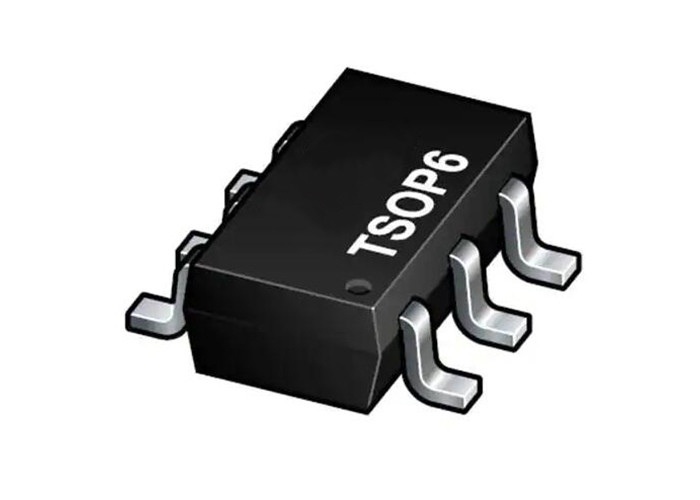

Integrated Circuit Chip PMN100EPAX 60V P-Channel MOSFET Transistors 6-TSOP

Integrated Circuit Chip PMN100EPAX 60V P-Channel MOSFET Transistors 6-TSOP
Integrated Circuit Chip PMN100EPAX 60V P-Channel MOSFET Transistors 6-TSOP

Large Image :  Integrated Circuit Chip PMN100EPAX 60V P-Channel MOSFET Transistors 6-TSOP

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: PMN100EPAX
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: 6-TSOP
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, Western Union
Chat Now

Integrated Circuit Chip PMN100EPAX 60V P-Channel MOSFET Transistors 6-TSOP

Description
Part Number: PMN100EPAX Rds On - Drain-Source Resistance: 130 MOhms
Pd - Power Dissipation: 1.7 W Fall Time: 25 Ns
Transistor Type: 1 P-Channel Typical Turn-On Delay Time: 7 Ns

 Integrated Circuit Chip PMN100EPAX 60V P-Channel MOSFET Transistors 6-TSOP​



Product Description Of PMN100EPAX

PMN100EPAX is Logic-level compatible, 60 V, P-channel Trench MOSFET Transistors, Surface Mount 6-TSOP.



Specification Of PMN100EPAX

Part Number PMN100EPAX
Vgs(th) (Max) @ Id
3.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs
17 nC @ 10 V
Vgs (Max)
±20V
Input Capacitance (Ciss) (Max) @ Vds
616 pF @ 30 V
Power Dissipation (Max)
660mW (Ta), 7.5W (Tc)
Operating Temperature
-55°C ~ 175°C (TJ)
Supplier Device Package
6-TSOP


Applications Of PMN100EPAX

  • Relay driver
  • High-speed line driver
  • High-side load switch
  • Switching circuits
