Product Description Of ACS37003KMCATR-085B5

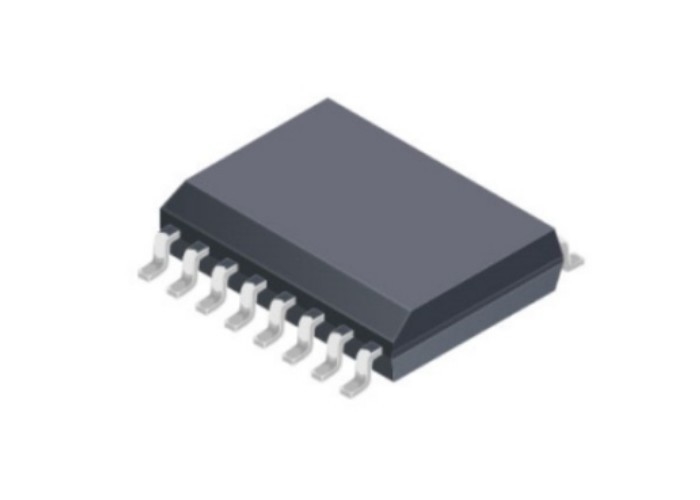

The ACS37003KMCATR-085B5 is a fully integrated current sensor IC that senses current flowing through the custom SOICW16 package. The current conductor has a very low (265 μΩ) resistance, ideal for low power dissipation.

Specification Of ACS37003KMCATR-085B5

Features Of ACS37003KMCATR-085B5

• Low internal primary conductor resistance (265 μΩ) for better power efficiency and low dissipation
• High operating bandwidth for fast control loops or where high-speed currents are monitored
• 400 kHz bandwidth
• 1.1 μs typical response time
• High accuracy
• As low as 1% maximum sensitivity error over temperature
• 8 mV maximum offset voltage over temperature
• Non-ratiometric operation with VREF output
• Differential sensing robust against external magnetic fields
• No magnetic hysteresis
• UL-certified to 62368-1, highly isolated compact SOIC16W surface mount package
• 5 kVRMS rated isolation test voltage
• 1144 VRMS / 1618 VDC basic isolation voltages
• 572 VRMS / 809 VDC reinforced isolation voltages
• Wide operating temperature, –40°C to 125°C
• Maximum 70 ARMS continuous operating current at 85°C

Typical Application Circuit Of ACS37003KMCATR-085B5
