Dual-Phase Capability MAX20408AFOE/VY+ Automotive Fully-Integrated Buck Converter

Dual-Phase Capability MAX20408AFOE/VY+ Automotive Fully-Integrated Buck Converter​

Product Description Of MAX20408AFOE/VY+

MAX20408AFOE/VY+ is Automotive, highly-integrated synchronous buck converters with internal highside and low-side switches.

Specification Of MAX20408AFOE/VY+

Features Of MAX20408AFOE/VY+

• High-Power DC/DC Converter in Small Solution Size
• 3.0V to 36V Operating Input Voltage Range
• Integrated High-Side and Low-Side FETs
• 8A/10A Maximum Output Current
• 400kHz and 2.1MHz Fixed Frequency Options
• Fixed 2.5ms Soft-Start Time
• 34ns Minimum On-Time
• Programmable 0.8V to 10V Output with 400kHz, 0.8V to 6V Output with 2.1MHz, or Fixed Output Options
• ±1.8% Output Voltage Accuracy
• Symmetric and Balanced SUP and PGND Pinout Placement for Superior EMI Performance

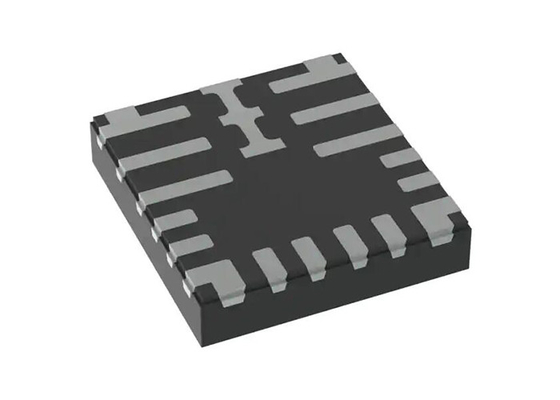

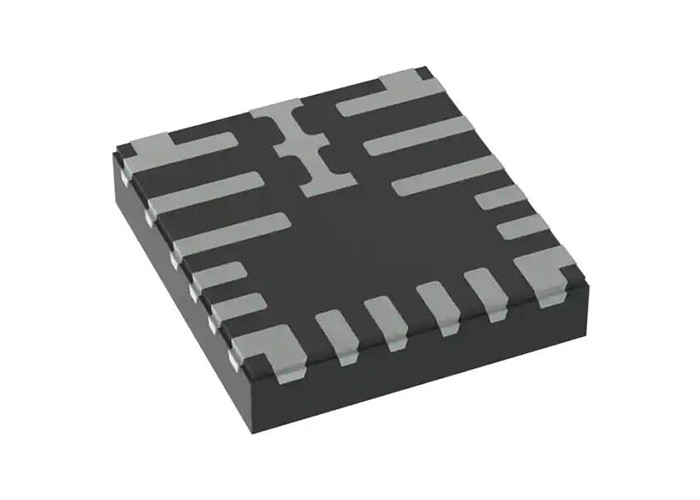

• Thermally-Enhanced 3.5mm x 3.75mm, 17-Pin FC2QFN Package
