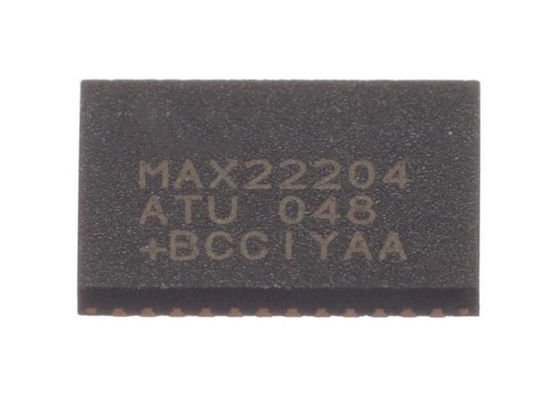

Integrated Circuit Chip MAX22204ATU+ Stepper Motor Driver 38-WFQFN Half Bridge

Integrated Circuit Chip MAX22204ATU+ Stepper Motor Driver 38-WFQFN Half Bridge​

Product Description Of MAX22204ATU+

MAX22204ATU+ is a two-phase stepper motor driver. It integrates two 65V, 3.8AMAX H-Bridges. The H-Bridge FETs have very low impedance, resulting in high driving efficiency and minimal heat.

Specification Of MAX22204ATU+

Features Of MAX22204ATU+

• Two H-Bridges with +65V Voltage Rating
• Total Rdson (High-Side + Low-Side): 300mΩ Typical (TA = 25°C)
• Current Ratings per H-Bridge (Typical at TA = 25°C)
• IMAX = 3.8AMAX (Impulsive Current for Driving Capacitive Loads)
• IRMS = 2ARMS per Phase (TA = 25°C, VM = +24V)
• Full-Scale DAC Current Configurable with External Resistance
• One Logic Input (TRQ) to Quickly Change the Torque among Two Levels
