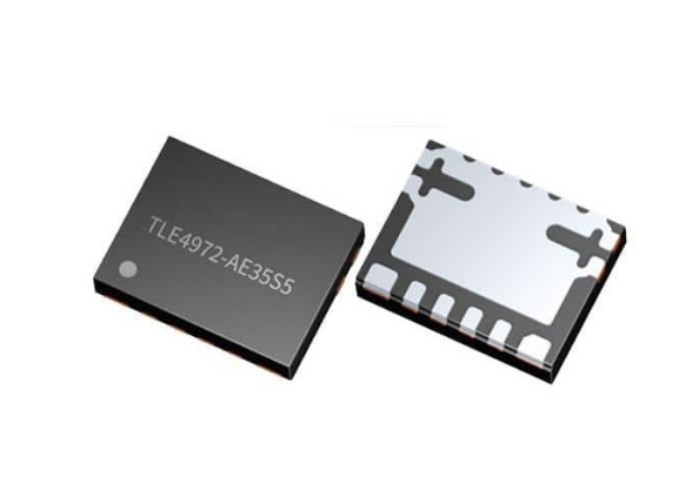

Integrated Circuit Chip TLE4972AE35S5XUMA1 Current Sensor 2000A 1 Channel Hall Effect

Integrated Circuit Chip TLE4972AE35S5XUMA1 Current Sensor 2000A 1 Channel Hall Effect

Product Description Of TLE4972AE35S5XUMA1

TLE4972AE35S5XUMA1 two separate over current detection pins (OCD) provide a fast output signal in case the measurement current exceeds the configured thresholds in typical 0.7 µs.

Specification Of TLE4972AE35S5XUMA1

Features Of TLE4972AE35S5XUMA1

• Full scale up to 31 mT for high current applications.
• Small form factor enables low insertion resistance and less power loss.
• Configurable analog output operational modes (fully-differential, semi-differential or single-ended, uni- and bidirectional with or without ratiometricity)
• Supply voltage 3.1 to 3.5 V.
• Developed in accordance with ISO 26262 for safety requirements rated up to ASIL B.
• Different package solutions for optimal system
• integration in different wiring schemes.

Applications Of TLE4972AE35S5XUMA1

• Automotive power train
• Battery main switch
• Electronic power steering
• On board chargers, etc.

Pin Configuration Of TLE4972AE35S5XUMA1
