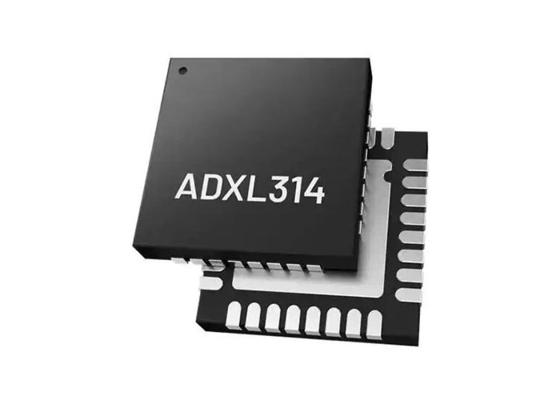

Integrated Circuit Chip ADXL314WBCPZ 3-Axis Digital Accelerometer 32-LFQFN

Integrated Circuit Chip ADXL314WBCPZ 3-Axis Digital Accelerometer 32-LFQFN​

Product Description Of ADXL314WBCPZ

ADXL314WBCPZ is a ±200 g range, 13-bit resolution, 3-axis digital accelerometer. The digital output data is formatted as 16-bit, twos complement data and is accessible through a serial peripheral interface (SPI), 3-wire or 4-wire, or an I2C digital interface.

Specification Of ADXL314WBCPZ

Features Of ADXL314WBCPZ

• ±200 g measurement range
• Low power: 170 µA in measurement mode and 17 µA in standby mode at VS = 2.5 V (typical)
• User selectable bandwidth up to 3200 Hz ODR
• Fixed 13-bit output resolution
• Supply voltage range: 2.0 V to 3.6 V
• Embedded memory management system with FIFO technology minimizes host processor load
• Shock event detection
• Activity/inactivity monitoring
• SPI (3- or 4-wire) and I2C digital interfaces
• Wide temperature range: −40 to +125°C
