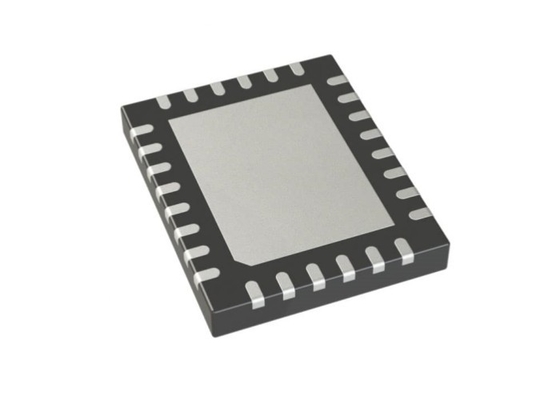

ICs Chip LT3942EUFD 36V 2A Synchronous Buck-Boost Converter And LED Driver

ICs Chip LT3942EUFD 36V 2A Synchronous Buck-Boost Converter And LED Driver
ICs Chip LT3942EUFD 36V 2A Synchronous Buck-Boost Converter And LED Driver
ICs Chip LT3942EUFD 36V 2A Synchronous Buck-Boost Converter And LED Driver ICs Chip LT3942EUFD 36V 2A Synchronous Buck-Boost Converter And LED Driver

Large Image :  ICs Chip LT3942EUFD 36V 2A Synchronous Buck-Boost Converter And LED Driver

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: LT3942EUFD
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: QFN-28
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, Western Union
Contact Now

ICs Chip LT3942EUFD 36V 2A Synchronous Buck-Boost Converter And LED Driver

Description
Part Number: LT3942EUFD Type: DC DC Regulator
Number Of Outputs: 1 Voltage - Supply (Min): 3V
Voltage - Supply (Max): 36V Current - Output / Channel: 2A

ICs Chip LT3942EUFD 36V 2A Synchronous Buck-Boost Converter And LED Driver



Product Description Of LT3942EUFD

The LT3942EUFD is a monolithic 4-switch synchronous buck-boost converter with constant voltage and constant current regulation, suitable for both voltage regulator and LED driver applications.



Specification Of LT3942EUFD

Part Number LT3942EUFD
Frequency
300kHz ~ 2MHz
Dimming
Analog, PWM
Applications
Automotive, General Purpose, Lighting
Operating Temperature
-40°C ~ 125°C (TJ)
Mounting Type
Surface Mount
Package / Case
28-WFQFN Exposed Pad


Features Of LT3942EUFD

  • 4-Switch Single Inductor Architecture Allows VIN Above, Below or Equal to VOUT
  • Constant Voltage and Constant Current Regulation
  • Proprietary Peak-Buck Peak-Boost Current Mode
  • 3V to 36V Input Voltage Range
  • 0V to 36V Output Voltage Range
  • ±1.5% Output Voltage Regulation
  • ±3% Output Current Regulation
  • 5000:1 External and 128:1 Internal PWM Dimming
  • Open and Short LED Protection with Fault Reporting
  • 300kHz to 2MHz Fixed Switching Frequency with External Frequency Synchronization
  • Flicker-Free Spread Spectrum for Low EMI
  • Available in 28-Lead QFN (4mm × 5mm)
  • AEC-Q100 Qualified for Automotive Applications



Applications Of LT3942EUFD

  • Voltage Regulator with Accurate Current Limit
  • General Purpose LED Driver
  • Automotive and Industrial Lighting



Typical Application Of LT3942EUFD

ICs Chip LT3942EUFD 36V 2A Synchronous Buck-Boost Converter And LED Driver 0



Other Supply Product Types

Part Number Package
MCF5206ECAB40 QFP160
MCF5372LCVM240 MAPBGA196
MCHC11F1CFNE3 PLCC68
MGA-30689 SOT89
MK10DN512VLK10 LQFP80
MT47H32M16HR-25E FBGA-84



FAQ

Q: Are your products original?
A: Yes, all products are original, new original import is our purpose.
Q: Which Certificates do you have?
A: We are ISO 9001:2015 Certified Company and member of ERAI.
Q: Can you support small quantity order or sample?Is the sample free?
A: Yes,we support sample order and small order.Sample cost is different according to your order or project.
Q: How to ship my order? Is it safe?
A: We use express to ship,such as DHL,Fedex,UPS,TNT,EMS.We can also use your suggested forwarder.Products will be in good packing and ensure the safety and we are responsible to product damage to your order.
Q: What about the lead time?
A: We can ship stock parts within 5 working days.If without stock,we will confirm lead time for you based on your order quantity.
