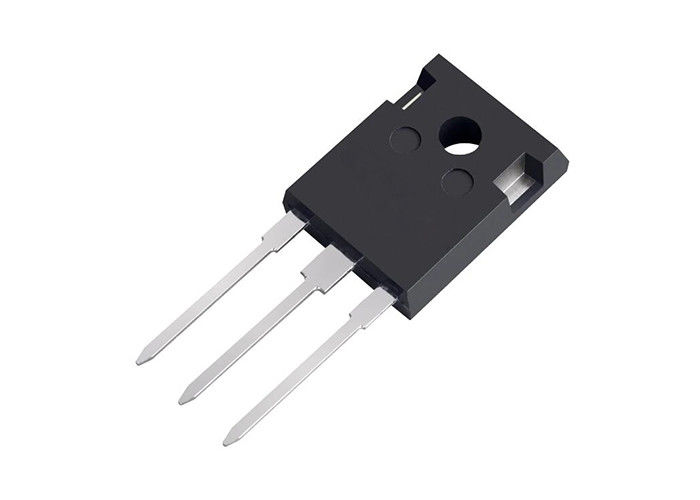

N-Channel MOSFET Transistors NTHL020N120SC1 1200V Integrated Circuit Chip TO-247-3

N-Channel MOSFET Transistors NTHL020N120SC1 1200V Integrated Circuit Chip TO-247-3
N-Channel MOSFET Transistors NTHL020N120SC1 1200V Integrated Circuit Chip TO-247-3
N-Channel MOSFET Transistors NTHL020N120SC1 1200V Integrated Circuit Chip TO-247-3 N-Channel MOSFET Transistors NTHL020N120SC1 1200V Integrated Circuit Chip TO-247-3

Large Image :  N-Channel MOSFET Transistors NTHL020N120SC1 1200V Integrated Circuit Chip TO-247-3

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: NTHL020N120SC1
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: TO-247-3
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, Western Union
Contact Now

N-Channel MOSFET Transistors NTHL020N120SC1 1200V Integrated Circuit Chip TO-247-3

Description
Part Number: NTHL020N120SC1 Rds On (Max) @ Id, Vgs: 28mOhm @ 60A, 20V
Input Capacitance (Ciss) (Max) @ Vds: 2890 PF @ 800 V Operating Temperature: -55°C ~ 175°C (TJ)
Current - Continuous Drain (Id) @ 25°C: 103A (Tc) Gate Charge (Qg) (Max) @ Vgs: 203 NC @ 20 V

 N-Channel MOSFET Transistors NTHL020N120SC1 1200V Integrated Circuit Chip TO-247-3​



Product Description Of NTHL020N120SC1

NTHL020N120SC1 is 1200V, 28mOhm, 103A, N-Channel SiC Power, Single MOSFET Transistors.



Specification Of NTHL020N120SC1

Part Number: NTHL020N120SC1
SiC
Through Hole
TO-247-3LD
N-Channel
1 Channel
1.2 kV
103 A
28 mOhms
- 15 V, + 25 V


Features Of NTHL020N120SC1

  • Typ. RDS(on)= 20 m
  • Ultra Low Gate Charge (QG(tot)= 203 nC)
  • Capacitance (Coss= 260 pF)
  • 100% UIL Tested
  • These Devices are RoHS Compliant



Typical Applications Of NTHL020N120SC1

  • UPS
  • DC/DC Converter
  • Boost Inverter



Other Electronic Components In Stock

Part Number Package
CM600DU-24F Module
PS219C5 Module
FU-612REA Module
PM100RLA060 Module
PM100CL1A120 Module
PM150CL1A120 Module



FAQ

Q: Are your products original?
A: Yes, all products are original, new original import is our purpose.
Q: Which Certificates do you have?
A: We are ISO 9001:2015 Certified Company and member of ERAI.
Q: Can you support small quantity order or sample?Is the sample free?
A: Yes,we support sample order and small order.Sample cost is different according to your order or project.
Q: How to ship my order? Is it safe?
A: We use express to ship,such as DHL,Fedex,UPS,TNT,EMS.We can also use your suggested forwarder.Products will be in good packing and ensure the safety and we are responsible to product damage to your order.
Q: What about the lead time?
A: We can ship stock parts within 5 working days.If without stock,we will confirm lead time for you based on your order quantity.
