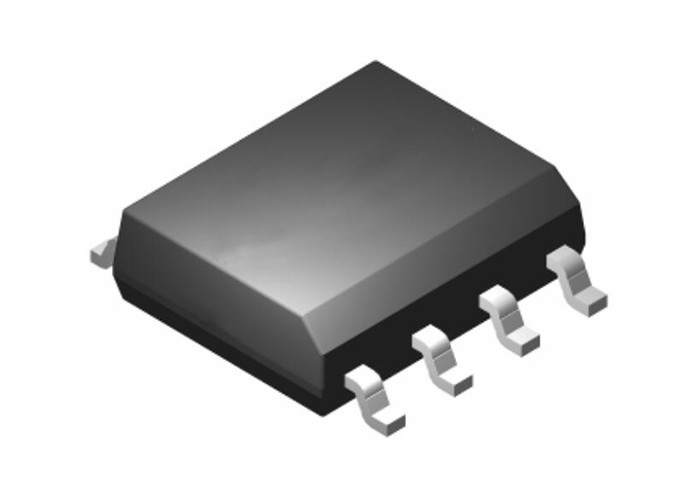

Integrated Circuit Chip TLE5012BE3005XUMA1 8-SOIC GMR-Based Angle Sensor 14mA

 Integrated Circuit Chip TLE5012BE3005XUMA1 8-SOIC GMR-Based Angle Sensor 14mA​

Product Description Of TLE5012BE3005XUMA1

TLE5012BE3005XUMA1 is a 360° angle sensor that detects the orientation of a magnetic field. This is achieved by measuring sine and cosine angle components with monolithic integrated Giant Magneto Resistance (iGMR) elements.

Specification Of TLE5012BE3005XUMA1

Features Of TLE5012BE3005XUMA1

• 0.25 µm CMOS technology
• Automotive qualified: -40°C to 150°C (junction temperature)
• ESD > 4 kV (HBM)
• Two separate highly accurate single bit SD-ADC
• 15 bit representation of absolute angle value on the output (resolution of 0.01°)
• 16 bit representation of sine / cosine values on the interface
• Max. 1.0° angle error over lifetime and temperature-range with activated auto-calibration
• Bi-directional SSC Interface up to 8 Mbit/s
