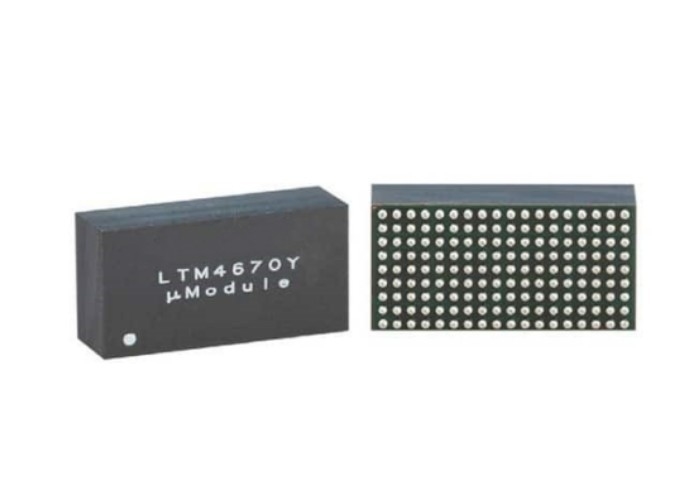

ICs Chip LTM4670EY Quad µModule Regulator With Configurable 10A Output Array

ICs Chip LTM4670EY Quad µModule Regulator with Configurable 10A Output Array

Product Description Of LTM4670EY

The LTM4670EY is a quad DC/DC step-down µModule® (micromodule) regulator with 10A per output. Outputs can be paralleled in an array for up to 40A capability. Included in the package are the switching controller, power MOSFETs, inductor and all support components. Operating over an input voltage range of 2.25V to 5.5V, each output voltage ranges from 0.5V to VIN set by only one external resistor. Its high efficiency design delivers 10A continuous output current per channel. Only a few input and output capacitors are needed.

The LTM4670EY employs a Silent Switcher®2 architecture with internal hot loop bypass capacitors to achieve both low EMI and high efficiency. The default frequency is internally set to 2MHz, it can be externally synchronized to a clock from 1MHz to 2.6MHz.

Specification Of LTM4670EY

Features Of LTM4670EY

• Quad Output Step-Down µModule Regulator with 10A per Output
• Input Voltage Range: 2.25V to 5.5V
• Output Voltage Range: 0.5V to VIN
• 10A DC Output Current Each Channel
• Ultra Low EMI Noise
• Parallelable for Up to 40A Output Current
• Selectable Pulse-Skipping Mode/Forced Continuous Mode
• Output Voltage Tracking
• Die Temperature Monitoring Output
• External Frequency Synchronization
• Power Good Indicator
• Overvoltage, Overcurrent and Overtemperature Protection
• 7.5mm × 15mm × 4.65mm BGA Packag

Applications Of LTM4670EY

• Telecom, Networking and Industrial Equipment
• Multirail Point-of-Load Regulation
• FPGAs, DSPs and ASIC Applications

Typical Applications Of LTM4670EY
