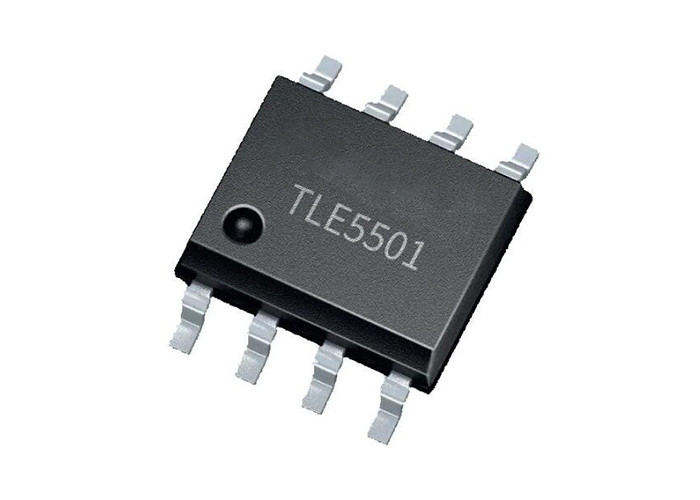

TMR-Based Angle Sensor TLE5501E0002XUMA1 Integrated Circuit Chip 8-SOIC Gull Wing

 TMR-Based Angle Sensor TLE5501E0002XUMA1 Integrated Circuit Chip 8-SOIC Gull Wing

Product Description Of TLE5501E0002XUMA1

TLE5501E0002XUMA1 is a version which has two independent VDD and GND pins, for the P- and N-bridge respectively. In this way, two completely independent bridge signals are generated which can be used in an advanced safety concept to perform a cross-check of the P- and N- signals and achieve a high diagnostic coverage for any sensor malfunction.

Specification Of TLE5501E0002XUMA1

Features Of TLE5501E0002XUMA1

• ESD > 4 kV (HBM)
• Tunneling Magneto Resistance (TMR)-based principle
• 360° angle measurement
• Large output signals of up to 0.37 V/V for direct micro controller connection
• Discrete bridge with differential sine and cosine output
• Ratiometric output signals
• Automotive qualified AEC-Q100, Grade 0: TA = -40°C to 150°C (ambient temperature)
