Ethernet ICs DP83TC813RRHFRQ1 Automotive Low-Power Small Footprint 100BASE-T1 Ethernet PHY

Ethernet ICs DP83TC813RRHFRQ1 Automotive Low-Power Small Footprint 100BASE-T1 Ethernet PHY

Product Description Of DP83TC813RRHFRQ1

The DP83TC813RRHFRQ1 device is an IEEE 802.3bwcompliant automotive PHYTER™ Ethernet physical layer transceiver which can work with Unshielded Twisted Pair cable. The PHY supports TC10 sleep and wake features. It provides all physical layer functions needed to transmit and receive data over unshielded single twisted-pair cables. The device provides xMII flexibility with support for standard MII, RMII, RGMII, and SGMII MAC interfaces.The PHY also integrates a low pass filter on the MDI side to reduce emissions.

Specification Of DP83TC813RRHFRQ1

Features Of DP83TC813RRHFRQ1

• Open Alliance and IEEE 802.3bw 100BASE-T1 compliant
• Passes Level IV emissions with Integrated LPF
• TC-10 compliant with < 20μA sleep current

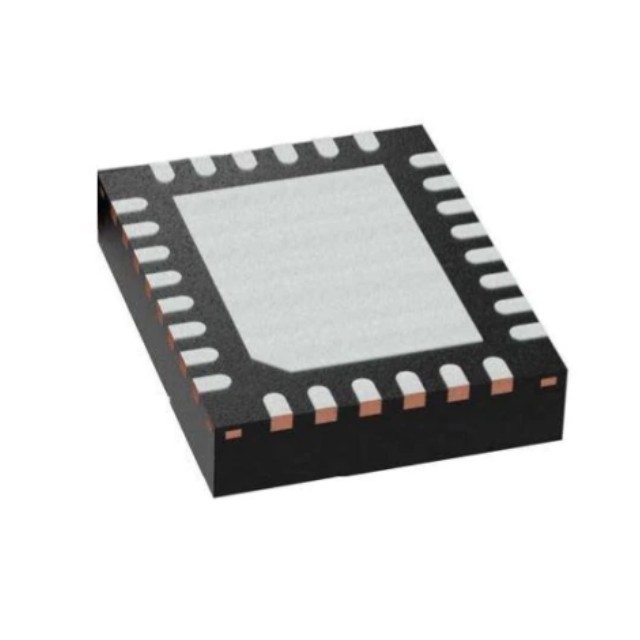

• Small Form Factor: 28pin VQFN (5mm x 4mm)
• SAE J2962-3 EMC compliant
• Configurable I/O voltages: 3.3 V, 2.5 V, and 1.8 V
• MAC interfaces: MII, RMII, RGMII and SGMII
• Optional separate voltage rail for MAC interface pins (3.3 V, 2.5 V, 1.8 V)
• AEC-Q100 qualified for automotive applications:
• Temperature grade 1: –40°C to +125 °C ambient operating temperature
• ±8-kV HBM ESD for pins 19 and 20
• IEC61000-4-2 ESD classification level 4 for pins 19 and 20: ±8-kV contact discharge

Applications Of DP83TC813RRHFRQ1

• Gateway and Body Control
• Telematics

Simplified Schematic Of DP83TC813RRHFRQ1
