Quad SPST Switch ADG2412BCPZ Analog Switches IC 16-WQFN Integrated Circuit Chip

Quad SPST Switch ADG2412BCPZ Analog Switches IC 16-WQFN Integrated Circuit Chip
Quad SPST Switch ADG2412BCPZ Analog Switches IC 16-WQFN Integrated Circuit Chip
Quad SPST Switch ADG2412BCPZ Analog Switches IC 16-WQFN Integrated Circuit Chip Quad SPST Switch ADG2412BCPZ Analog Switches IC 16-WQFN Integrated Circuit Chip

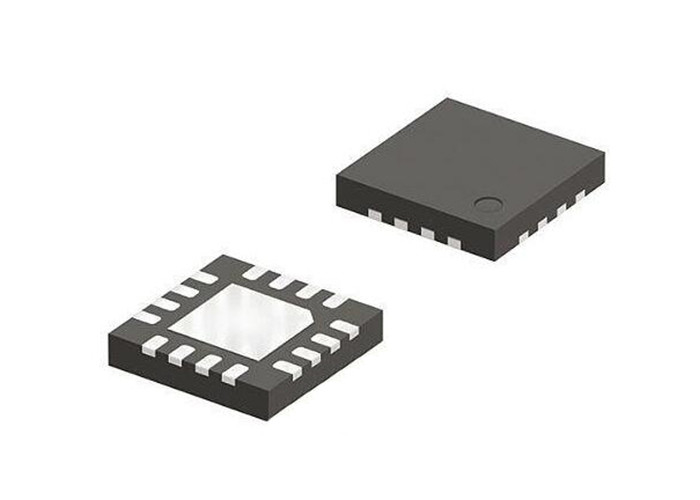

Large Image :  Quad SPST Switch ADG2412BCPZ Analog Switches IC 16-WQFN Integrated Circuit Chip

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: ADG2412BCPZ
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: 16-WQFN
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, Western Union
Contact Now

Quad SPST Switch ADG2412BCPZ Analog Switches IC 16-WQFN Integrated Circuit Chip

Description
Part Number: ADG2412BCPZ On-State Resistance (Max): 650mOhm
Switch Circuit: SPST - NC Multiplexer/Demultiplexer Circuit: 1:1
Configuration: 4 X SPST Number Of Channels: 1 Channel

 Quad SPST Switch ADG2412BCPZ Analog Switches IC 16-WQFN Integrated Circuit Chip​



Product Description Of ADG2412BCPZ

ADG2412BCPZ is Quad SPST Switch - Analog Switches IC, The digital inputs are compatible with 5 V, 3.3 V, and 1.8 V logic inputs without the requirement for a separate digital logic supply pin.



Specification Of ADG2412BCPZ

Part Number ADG2412BCPZ
Voltage - Supply, Dual (V±)
±4.5V ~ 16.5V
Switch Time (Ton, Toff) (Max)
403ns, 221ns
-3db Bandwidth
171MHz
Charge Injection
-1800pC
Channel Capacitance (CS(off), CD(off))
76pF, 76pF
Current - Leakage (IS(off)) (Max)
4nA
Crosstalk
-105dB @ 100kHz


Applications Of ADG2412BCPZ

  • Automatic test equipment
  • Data acquisition
  • Instrumentation
  • Avionics
  • Audio and video switching
  • Communication systems
  • Relay replacement



Other Electronic Components In Stock

Part Number Package
PAM3110BLA330R TO-252
ERA-8SM SMD
MAX3488EESA SOP8
LP38798SD WSON-12
PEX8725-CA80BC BGA
EP4CGX30CF23C7N BGA484



FAQ

Q: Are your products original?
A: Yes, all products are original, new original import is our purpose.
Q: Which Certificates do you have?
A: We are ISO 9001:2015 Certified Company and member of ERAI.
Q: Can you support small quantity order or sample?Is the sample free?
A: Yes,we support sample order and small order.Sample cost is different according to your order or project.
Q: How to ship my order? Is it safe?
A: We use express to ship,such as DHL,Fedex,UPS,TNT,EMS.We can also use your suggested forwarder.Products will be in good packing and ensure the safety and we are responsible to product damage to your order.
Q: What about the lead time?
A: We can ship stock parts within 5 working days.If without stock,we will confirm lead time for you based on your order quantity.
