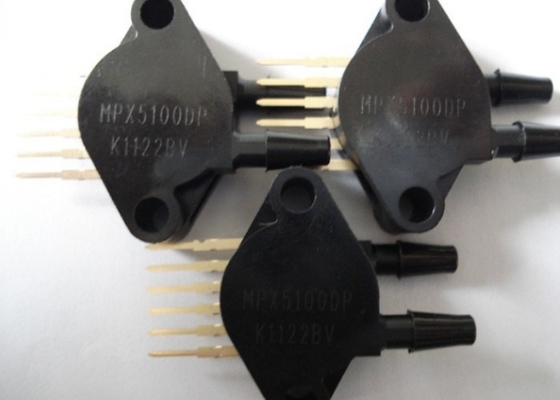

Integrated Circuit Chip MPX5100DP Board Mount Pressure Sensors 14.5PSI 6-SIP Module

Integrated Circuit Chip MPX5100DP Board Mount Pressure Sensors 14.5PSI 6-SIP Module

Product Description Of MPX5100DP

The MPX5100DP piezoresistive transducer is a state-of-the-art monolithic silicon pressure sensor designed for a wide range of applications, but particularly those employing a microcontroller or microprocessor with A/D inputs. This patented, single element transducer combines advanced micromachining techniques, thin-film metallization, and bipolar processing to provide an accurate, high-level, analog output signal that is proportional to the applied pressure.

Specification Of MPX5100DP

Features Of MPX5100DP

• 2.5% maximum error over 0 to 85 °C
• Ideally suited for microprocessor or microcontroller-based systems
• Patented silicon shear stress strain gauge
• Available in absolute, differential and gauge configuration
• Durable epoxy unibody element
• Easy-to-use chip carrier option

Typical Applications Of MPX5100DP

• Patient monitoring
• Process control
• Pump/motor control
• Pressure switching
• White goods

Block Diagram Of MPX5100DP

Device Pinout Of MPX5100DP
