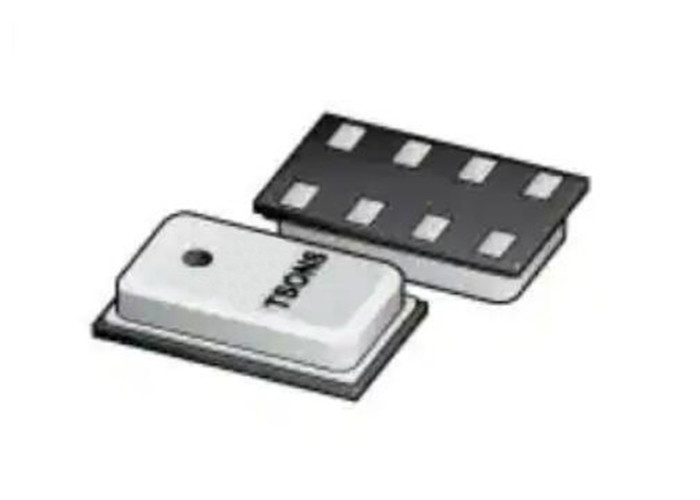

MPL3115A2ST1 Integrated Circuit Chip LGA-8 Piezoresistive Pressure Sensor 400Pa

 Integrated Circuit Chip MPL3115A2ST1 LGA-8 Piezoresistive Pressure Sensor 400Pa​

Product Description Of MPL3115A2ST1

MPL3115A2ST1 is a compact, piezoresistive, absolute pressure sensor with an I2C digital interface.
MPL3115A2ST1 has a wide operating range of 20 kPa to 110 kPa, a range that covers all surface elevations on earth.

Specification Of MPL3115A2ST1

Features Of​ MPL3115A2ST1

• Operating range: 20 kPa to 110 kPa absolute pressure
• Calibrated range: 50 kPa to 110 kPa absolute pressure
• Calibrated temperature output: −40 °C to 85 °C
• I2C digital output interface
• Fully compensated internally
• Precision ADC resulting in 0.1 meter of effective resolution
• 1.95 V to 3.6 V supply voltage, internally regulated
• 1.6 V to 3.6 V digital interface supply voltage
• Operating temperature from −40 °C to +85 °C
