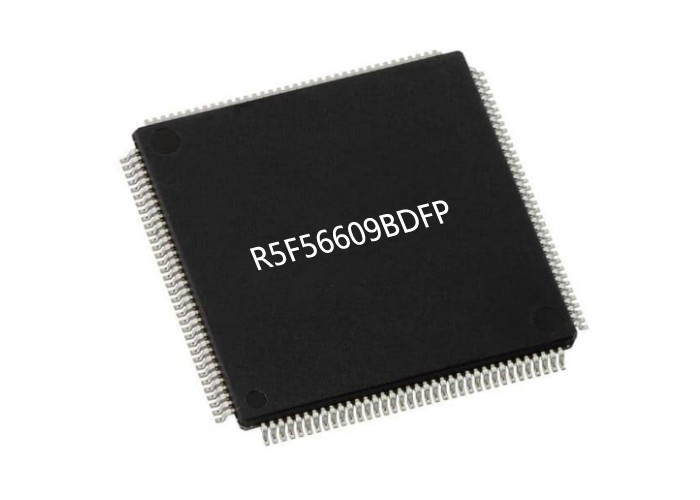

R5F56609BDFP Integrated Circuit Chip 32-Bit Microcontrollers - MCU RX660 1MB LFQFP100

Integrated Circuit Chip R5F56609BDFP 32-bit Microcontrollers - MCU RX660 1MB LFQFP100

Product Description Of R5F56609BDFP

The R5F56609BDFP is a 120MHz general-purpose MCU with an increased number of effective pins by 10% or more compared to existing MCUs.

Specification Of R5F56609BDFP

Features Of R5F56609BDFP

• Wide operating voltage range of 2.7V to 5.5V
• 120MHz RXv3 CPU core on-board (721CoreMark)
• Single-precision FPU, batch register save function for faster interrupt response, trigonometric function accelerator (TFU)
• Up to 1MB flash memory (120MHz read access) and 128KB SRAM
• 32KB data flash that can store data like an EEPROM
• Pin layout is compatible with existing RX products, peripheral function compatible
• ±1.0% accuracy high-speed on-chip oscillator
• CAN FD (ISO 11898-1:2015 standard)
• Infrared remote control receiver circuit

Applications Of R5F56609BDFP

• Home appliance (air con, WM, IH cooker)
• Industry (robotics, door openers, sewing machines, vending machines, UPS)
• HVAC (heating, air conditioning, boiler control)

Pin Assignment Of R5F56609BDFP
