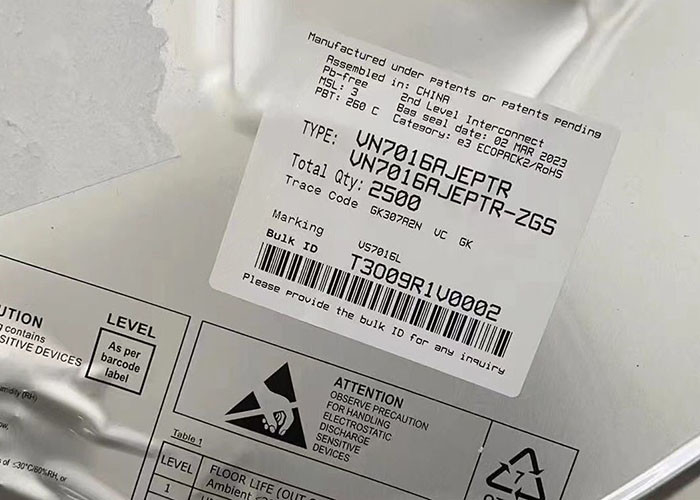

VN7016AJEPTR High-Side Driver With MultiSense Analog Feedback For Automotive Applications

 VN7016AJEPTR High-Side Driver With MultiSense Analog Feedback For Automotive Applications

Product Description Of VN7016AJEPTR

VN7016AJEPTR device is a dual channel high-side drivermanufactured using proprietary VIPower® M0-7 technology and housed in PowerSSO-16package. VN7016AJEPTR device is designed to drive 12 Vautomotive grounded loads through a 3 V and5 V CMOS-compatible interface, providingprotection and diagnostics.

Specification Of VN7016AJEPTR

Features Of VN7016AJEPTR

• Single channel smart high-side driver with MultiSense analog feedback

• Very low standby current

• Compatible with 3 V and 5 V CMOS outputs

• MultiSense diagnostic functions

• Multiplexed analog feedback of: load current with high precision proportional current mirror, VCC supply voltage and TCHIP device temperature

• Overload and short to ground (power limitation) indication

• Thermal shutdown indication

• OFF-state open-load detection

• Output short to VCC detection

• Sense enable/disable

• Protections

• Undervoltage shutdown

• Overvoltage clamp

• Load current limitation

• Self limiting of fast thermal transients

• Configurable latch-off on over temperature or power limitation with dedicated fault reset pin

• Loss of ground and loss of VCC

• Reverse battery with external components

• Electrostatic discharge protection

Applications Of VN7016AJEPTR

• All types of Automotive resistive, inductive and capacitive loads

• Specially intended for Automotive Headlamps

Other Electronic Components In Stock

FAQ

Q: Are your products original?
A: Yes, all products are original, new original import is our purpose.
Q: Which Certificates do you have?
A: We are ISO 9001:2015 Certified Company and member of ERAI.
Q: Can you support small quantity order or sample?Is the sample free?
A: Yes,we support sample order and small order.Sample cost is different according to your order or project.
Q: How to ship my order? Is it safe?
A: We use express to ship,such as DHL,Fedex,UPS,TNT,EMS.We can also use your suggested forwarder.Products will be in good packing and ensure the safety and we are responsible to product damage to your order.
Q: What about the lead time?
A: We can ship stock parts within 5 working days.If without stock,we will confirm lead time for you based on your order quantity.
