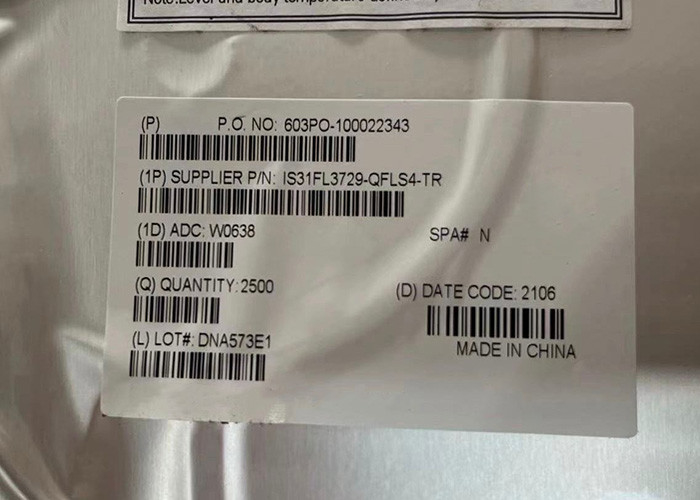

IS31FL3729-QFLS4-TR Integrated Circuit Chip 35mA Matrix LED Driver IC 32-QFN

Integrated Circuit Chip IS31FL3729-QFLS4-TR 35mA Matrix LED Driver IC 32-QFN​

Product Description Of IS31FL3729-QFLS4-TR

IS31FL3729-QFLS4-TR is a general purpose 16×8 or 15×9 matrix LED driver programmed via a 1MHz I2C bus compatible interface. Each LED can be dimmed individually with 8-bit PWM data, and each CSx has 8-bit DC current scaling for color calibration.

Specification Of IS31FL3729-QFLS4-TR

Features Of IS31FL3729-QFLS4-TR

• Supply voltage range: 2.7V to 5.5V
• 16 current sinks
• Support 16×n (n=1~8), 15×9 LED matrix configurations
• Individual 256 PWM control steps
• 256 DC current steps for each CSx
• 64 global current steps
• SDB rising edge resets the I2C interface
• Register programmable PWM frequency: 0.25kHz to 55kHz
• 1MHz I2C-compatible interface
• Individual open and short error detect function
• PWM 180 degree phase shift
• Spread spectrum
• De-ghost
• QFN-32 (4mm×4mm) and eTQFP-32 packages

Applications Of IS31FL3729-QFLS4-TR

• White goods LED display panel.
• IOT device
