IPB120N10S4-05 Integrated Circuit Chip N-Channel Transistors TO-263-3 Surface Mount

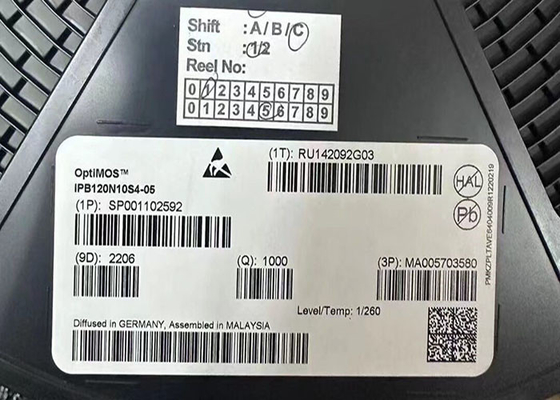

Large Image : IPB120N10S4-05 Integrated Circuit Chip N-Channel Transistors TO-263-3 Surface Mount

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	IPB120N10S4-05

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	TO-263-3
Delivery Time:	5-8 work days
Payment Terms:	T/T, L/C, Western Union

Contact Now

IPB120N10S4-05 Integrated Circuit Chip N-Channel Transistors TO-263-3 Surface Mount

Description

Part Number:	IPB120N10S4-05	Product Status:	Active
FET Type:	N-Channel	Technology:	MOSFET (Metal Oxide)
Mounting Type:	Surface Mount	Drain To Source Voltage (Vdss):	100 V
Highlight:	IPB120N10S4-05 , N-Channel Transistor IC , IPB120N10S4-05 Integrated Circuit

Integrated Circuit Chip IPB120N10S4-05 N-Channel Transistors TO-263-3 Surface Mount

Product Description Of IPB120N10S4-05

IPB120N10S4-05 is N-Channel 100 V 120A (Tc) 190W (Tc) Transistors,the package is PG-TO263-3 Surface Mount.

Specification Of IPB120N10S4-05

Part Number	IPB120N10S4-05
Current - Continuous Drain (Id) @ 25°C	120A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	5mOhm @ 100A, 10V
Vgs(th) (Max) @ Id	3.5V @ 120µA
Gate Charge (Qg) (Max) @ Vgs	91 nC @ 10 V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	6540 pF @ 25 V
Power Dissipation (Max)	190W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)

Features Of IPB120N10S4-05

N-channel - Normal Level - Enhancement mode
AEC Q101 qualified
MSL1 up to 260°C peak reflow
175°C operating temperature
RoHS compliant
100% Avalanche tested
