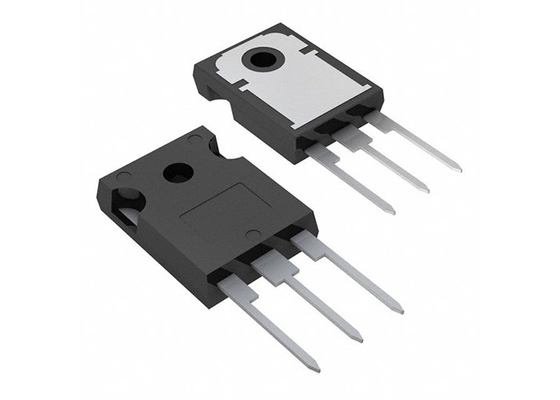

Integrated Circuit Chip STGW25M120DF3 1200V IGBT Trench Field Stop Transistors TO-247-3

Integrated Circuit Chip STGW25M120DF3 1200V IGBT Trench Field Stop Transistors TO-247-3

Product Description Of STGW25M120DF3

STGW25M120DF3 is an IGBT developed using an advanced proprietary trench gate field-stop structure. The device is part of the M series IGBTs, which represent an optimal balance between inverter system performance and efficiency where the low-loss and the short-circuit functionality is essential.

Specification Of STGW25M120DF3

Features Of STGW25M120DF3

• Maximum junction temperature: TJ = 175 °C

• 10 μs of short-circuit withstand time

• Low VCE(sat) = 1.85 V (typ.) @ IC = 25 A

• Tight parameter distribution

• Positive VCE(sat) temperature coefficient

• Low thermal resistance

• Soft- and fast-recovery antiparallel diode

Applications Of STGW25M120DF3

• Industrial drives

• UPS

• Solar

• Welding
