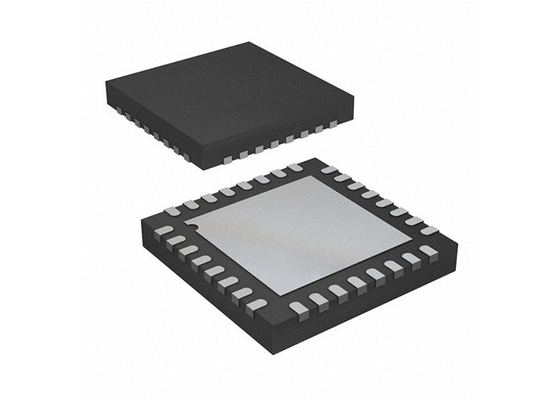

Integrated Circuit Chip ADL5304ACPZ High Speed 200dB Logarithmic Converter 32-WFQFN

Integrated Circuit Chip ADL5304ACPZ High Speed 200dB Logarithmic Converter 32-WFQFN

Product Description Of ADL5304ACPZ

ADL5304ACPZ is a high speed logarithmic converter with fast response and low noise over a 200 dB (1 pA to 10 mA) measurement range.

Features Of ADL5304ACPZ

• Optimized for very fast response at all input currents

• Overall bandwidth of >4 MHz for inputs>1 μA

• Bandwidth: 25 kHz at input of 1 nA and 350 kHz at 10 nA

• 10 decades of input range: 1 pA to 10 mA

• Law conformance: +0.25 dB from 100 pA to 100 μA

• Log ratio or fixed-intercept operation

• Precision voltage references and reference current

• Adaptive photodiode (PD) bias for low dark current

• Programmable log slope and intercept

• Default log slope of 10 mV/dB atVLOG pin

• Single- or dual-supply operation

Applications Of ADL5304ACPZ

• High accuracy optical power measurement

• Wide range baseband log compression

• Versatile detector for high speed APC loops
