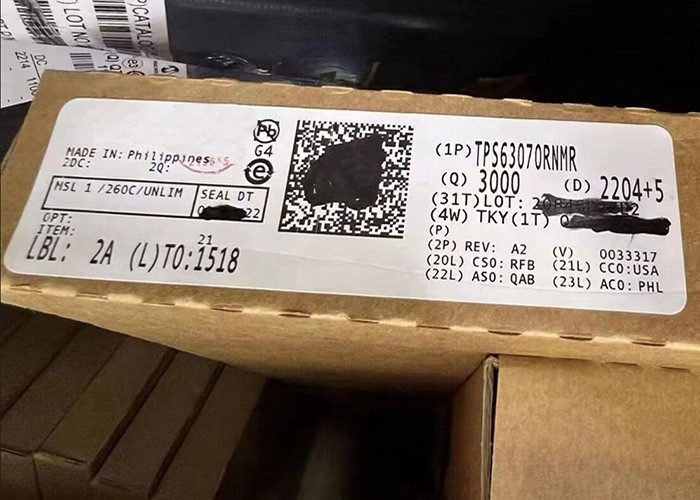

3.6A Switch Current TPS63070RNMR Buck Boost Converter 15-VQFN Integrated Circuit Chip

3.6A Switch Current TPS63070RNMR Buck Boost Converter 15-VQFN Integrated Circuit Chip
3.6A Switch Current TPS63070RNMR Buck Boost Converter 15-VQFN Integrated Circuit Chip

Large Image :  3.6A Switch Current TPS63070RNMR Buck Boost Converter 15-VQFN Integrated Circuit Chip

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: TPS63070RNMR
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: 15-VQFN
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, Western Union
Chat Now

3.6A Switch Current TPS63070RNMR Buck Boost Converter 15-VQFN Integrated Circuit Chip

Description
Part Number: TPS63070RNMR Input Voltage Range: 2.0 V To 16 V
Current - Output: 3.6A (Switch) Size: 3mm X 2.5mm
Typical Device Quiescent Current: 50 μA Output Voltage Range: 2.5 V To 9 V

3.6A Switch Current TPS63070RNMR Buck Boost Converter 15-VQFN Integrated Circuit Chip​



Product Description Of TPS63070RNMR

TPS63070RNMR is a high efficiency, low quiescent current buck-boost converter suitable for applications where the input voltage can be higher or lower than the output voltage. Output currents can go as high as 2 A in boost mode and in buck mode.



Specification Of TPS63070RNMR

Part Number TPS63070RNMR
Function
Step-Up/Step-Down
Output Configuration
Positive
Topology
Buck-Boost
Output Type
Adjustable
Number of Outputs
1
Voltage - Input (Min)
2V
Voltage - Input (Max)
16V
Voltage - Output (Min/Fixed)
2.5V
Voltage - Output (Max)
9V
Current - Output
3.6A (Switch)
Frequency - Switching
2.4MHz
Synchronous Rectifier
Yes
Operating Temperature
-40°C ~ 125°C (TJ)
Mounting Type
Surface Mount
Package / Case
15-PowerVFQFN
Supplier Device Package
15-VQFN-HR (3x2.5)


Features Of TPS63070RNMR

  • Input Voltage Range: 2.0 V to 16 V
  • Output Voltage Range: 2.5 V to 9 V
  • Up to 95% Efficiency
  • +/- 1% dc accuracy in PWM mode
  • +3% / -1% dc accuracy in PFM mode
  • 2 A Output Current in Buck Mode
  • 2 A Output Current in Boost Mode (VIN = 4 V; Vout = 5 V)
  • Automatic Transition Between Step Down and Boost Mode
  • Typical Device Quiescent Current: 50 μA
  • Fixed and Adjustable Output Voltage Options
  • Output Discharge Option
  • Power Save Mode for Improved Efficiency at Low Output Power
  • Forced Fixed Frequency Operation at 2.4 MHz and Synchronization Option



Applications Of TPS63070RNMR

  • Dual Li-Ion Applications
  • Industrial Metering Equipment
  • DSC's and Camcorders
  • Notebook Computers
  • Ultra Mobile PC's and Mobile Internet Devices
  • Personal Medical Products



Other Electronic Components In Stock

Part Number Package
ADS7046IRUGR X2QFN-8
ADS7138QRTERQ1 WQFN16
ADS122U04IPWR TSSOP16
ADS1015IRUGR X2QFN-10
ADS1118IDGSR MSOP10
ADS1219IPWR TSSOP16
