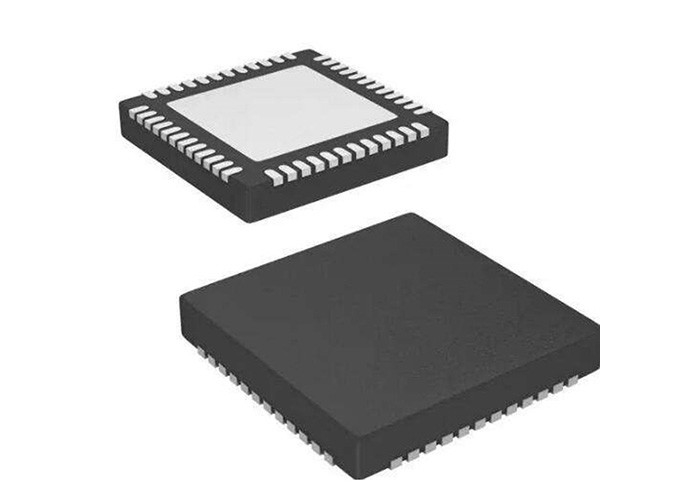

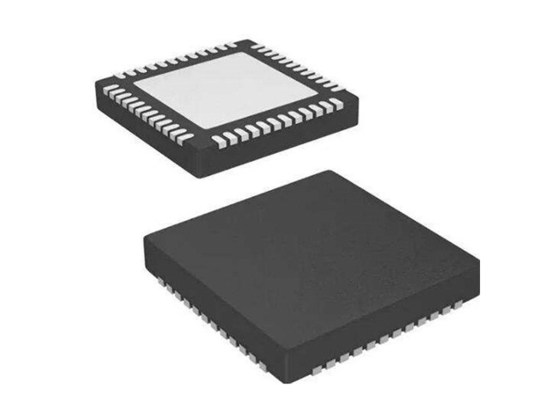

Integrated Circuit Chip SZ18201 Single Port 100Gb Ethernet Physical Layer Transceiver

 Integrated Circuit Chip SZ18201 Single Port 100Gb Ethernet Physical Layer Transceiver

Product Description Of SZ18201

SZ18201 is a low-power, single-port 10/100 Mbps Ethernet PHY that provides full physical layer functionality over CAT5 twisted pair.
SZ18201 also provides a flexible standard MII and RMII interface to the MAC.
SZ18201 uses mixed-signal processing to perform equalization, data recovery, and recovery error correction for robust operation over CAT5 twisted pair.
SZ18201 provides integrated built-in self-test and loopback functions for easy commissioning.
SZ18201 offers innovative and robust methods for reducing power consumption, such as EEE, WoL and other configurable power saving modes.

Feature Of SZ18201

• IEEE 802.3az, EEE

• 100Base-TX

• 10Base-Te

• MII mode

• RMII mode

• Full/Half duplex

• Auto-negotiation

• Power down mode

• Base Line Wander (BLW) compensation

• Auto MDIX

• Interrupt function

• WOL, Wake on Lan

• Automatic Polarity correction

• 2 sets LED indicator

• 25 MHz crystal or OSC

• Provide 50Mhz clock source for MAC

• Single Power supply, internal LDO

• Package QFN 32, 5x 5mm

Application Of SZ18201

• General Embedded Applications

• Video Surveillance

• Industrial Control

• Factory Automation
