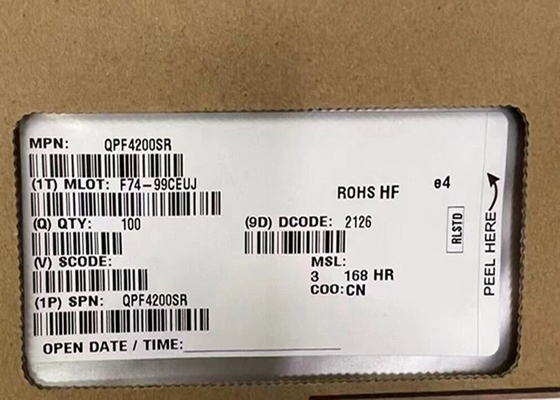

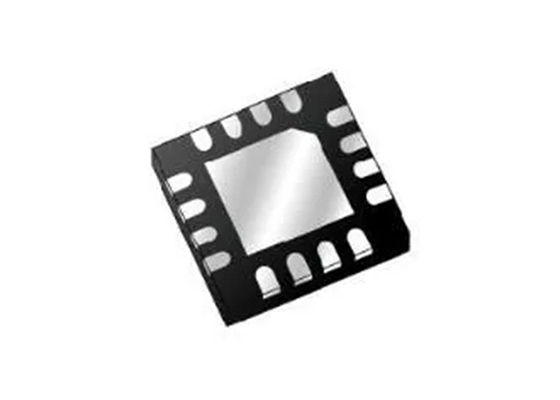

QPF4200SR Integrated Circuit Chip 2.4GHz Wi-Fi Front End Module QFN-16 Package

 Integrated Circuit Chip QPF4200SR 2.4GHz Wi-Fi Front End Module QFN-16 Package

Product Description Of QPF4200SR

QPF4200SR is an integrated front end module (FEM) designed for Wi-Fi 6 (802.11ax) systems. The compact form factor and integrated matching minimizes layout area in the application.
The QPF4200SR integrates a 2.4 GHz power amplifier (PA),regulator, single pole two throw switch (SP2T), bypassable low noise amplifier (LNA) and DC power detector into a single device.

Specifications Of QPF4200SR

Features Of QPF4200SR

• 2412-2484 MHz

• POUT = +19 dBm MCS11 HE40 -43 dB Dynamic EVM

• POUT = +21 dBm MCS9 VHT40 -35 dB Dynamic EVM

• POUT = +22.5 dBm MCS7 VHT40 -30 dB Dynamic EVM

• POUT = +25 dBm HT20 MCS0 Spectral Mask Compliance

• POUT = +26 dBm 11b Spectral Mask Compliance

• Optimized for +5 V Operation

• 33 dB Tx Gain

• 2.1 dB Noise Figure

• 15.5 dB Rx Gain & 6 dB Bypass Loss

• 25 dB 5 GHz Rejection on Rx Path

• Integrated DC Power Detector

Applications Of QPF4200SR

• Access Points

• Wireless Routers

• Residential Gateways

• Customer Premise Equipment

• Internet of Things
