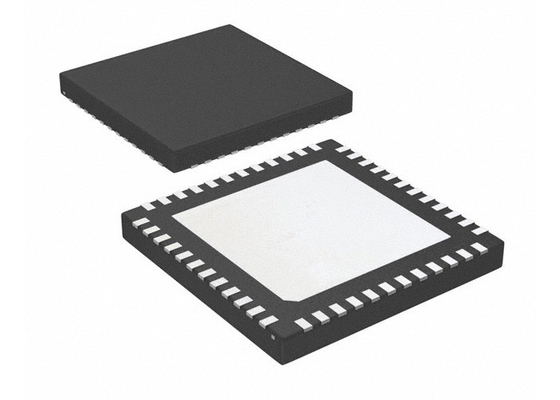

Product Description Of LMK03318RHSR

LMK03318RHSR is an ultra-low-noise PLLATINUM™ clock generator with one fractional-N frequency synthesizer with integrated VCO, flexible clock distribution and fanout, and pin-selectable configuration states stored in on-chip EEPROM.

Features Of LMK03318RHSR

• Ultra-Low Noise, High Performance

• Jitter: 100-fs RMS Typical, FOUT > 100 MHz

• PSNR: –80 dBc, Robust Supply NoiseImmunity

• Flexible Device Options

• Up to 8 AC-LVPECL, AC-LVDS, AC-CML,HCSL or LVCMOS Outputs, or Any Combination

• Pin Mode, I2C Mode, EEPROM Mode

• 71-Pin Selectable Pre-programmed Default Start-Up Options

• Dual Inputs With Automatic or Manual Selection

• Crystal Input: 10 to 52 MHz

• External Input: 1 to 300 MHz

• Frequency Margining Options

• Fine Frequency Margining Using Low-Cost Pullable Crystal Reference

• Glitchless Coarse Frequency Margining (%) Using Output Dividers

• Other Features

• Supply: 3.3-V Core, 1.8-V, 2.5-V, or 3.3-V Output Supply

• Industrial Temperature Range (–40ºC to 85ºC)

Applications Of LMK03318RHSR

• Switches and Routers

• Network and Telecom Line Cards

• Servers and Storage Systems

• Wireless Base Station

• PCIe Gen1, Gen2, Gen3, Gen4

• Test and Measurement

• Broadcast Infrastructure
