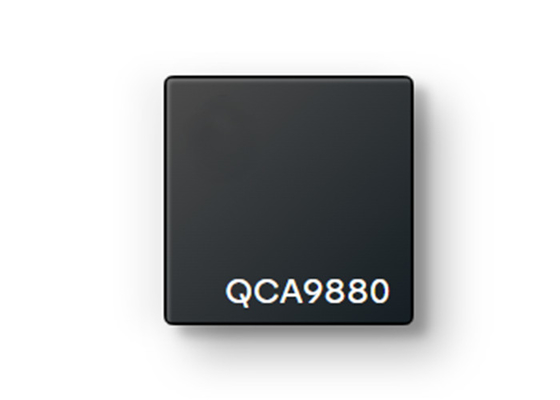

Wireless Communication Module QCA9880-BR4A-R 450 Mbps Dual-Band 5GHz Wi-Fi SoC

Wireless Communication Module QCA9880-BR4A-R 450 Mbps Dual-Band 5GHz Wi-Fi SoC

Product Description Of QCA9880-BR4A-R
QCA9880-BR4A-R is a highly integrated wireless local area network (WLAN) system-on-chip (SoC) for 5 GHz 802.11ac or 2.4/5 GHz 802.11n WLAN applications.

Features Of QCA9880-BR4A-R

• WLAN CPU supports low-level setup of PHY and RF to offload the host processor for other tasks

• Dynamic frequency selection (DFS) in required 5-GHz bands when used as an AP

• 3x3 MIMO technology improves effective throughput and range over existing 802.11a/b/g products

• Supports spatial multiplexing, cyclic-delay diversity (CDD), low-density parity check (LDPC), maximal ratio combining (MRC), Space Time Block Code (STBC)

• Smart antenna diversity

• Single-ended RF ports with integrated matching simplify board design and layout

• Integrated 1.2 V switching regulator

• Data rates of up to 1.3 GBps in 802.11ac 80 MHz channels

• Data rates of up to 216.7 Mbps for 20 MHz channels and 450 Mbps for 40 MHz channels using reduced (short) guard interval in 802.11n mode

• Supports 20/40 MHz at 2.4 GHz

• Supports 20/40/80 MHz at 5 GHz

• On-Chip One-Time Programmable (OTP) memory

• Support for IEEE 802.11d, e, h, i, k, r, v time stamp, and w standards

• WEP, TKIP, AES, and WAPI hardware encryption

• PCI Express 1.1 interface

• 20 and 40 MHz channelization

• Frame aggregation, block ACK

• 802.11e-compatible bursting

• 108-pin, 12 mm x 12 mm LPCC package
