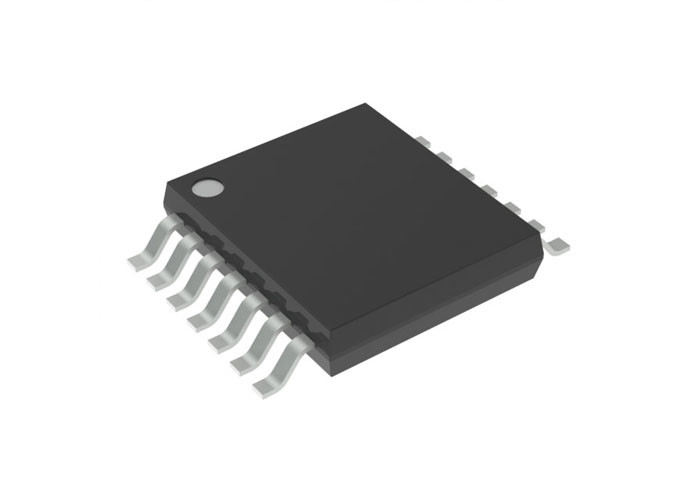

Integrated Circuit Chip RTQ2106GCP-QA 3A Synchronous Step Down Converter TSSOP14

Integrated Circuit Chip RTQ2106GCP-QA 3A Synchronous Step Down Converter TSSOP14​

Product Description Of RTQ2106GCP-QA

RTQ2106GCP-QA is a 3A, high-efficiency, current mode synchronous step-down converter which is optimized for automotive applications. The device operates with input voltages from 3V to 36V and is protected from load dump transients up to 42V, eases input surge protection design.

Specification Of RTQ2106GCP-QA

Features Of RTQ2106GCP-QA

• Wide Output Voltage Range : 0.8V to VIN
• Maximum Output Current : 3A
• Peak Current Mode Control
• Integrated 90mΩ Switch and 90mΩ Synchronous Rectifier
• Low Quiescent Current : 40μA
• Fast 60ns Minimum Switch On-Time
• Ultra-Short 65ns Minimum Switch Off-Time
• Synchronizable Switching : 300kHz to 2.2MHz
• Selectable PSM/FPWM at Light Load
• Built-In Spread-Spectrum Frequency Modulation for Low EMI
• Externally Adjustable Soft-Start
• Power Good Indication
• Enable Control
• 0.8V ±1.5% Reference Accuracy

Applications Of RTQ2106GCP-QA

• Automotive Systems
• Car Camera Module and Car Cockpit Systems
• Connected Car Systems
• Point of Load Regulator in Distributed Power Systems
• Digital Set Top Boxes
• Broadband Communications
