Integrated Circuit Chip TVS Diodes ESD224DQAR 4 Low Clamping 4-Channel ESD Protection Device

Integrated Circuit Chip TVS Diodes ESD224DQAR 4 Low Clamping 4-Channel ESD Protection Device

Product Description Of ESD224DQAR

ESD224DQAR is a bidirectional TVS ESD protection diode array for high speed applications such as USB 3.0 and HDMI 2.0. The ESD224DQAR is rated to dissipate ESD strikes at the maximum level specified in the IEC 61000-4-2 international standard.

Specification Of ESD224DQAR

Features Of ESD224DQAR

• IEC 61000-4-2 Level 4 ESD Protection

• ±12-kV Contact Discharge

• ±15-kV Air Gap Discharge

• IEC 61000-4-4 EFT Protection:80 A (5/50 ns)

• IEC 61000-4-5 Surge Protection:2 A (8/20 µs)

• IO Capacitance:0.5 pF (Typical)

• HDMI 2.0 Compliant

• Ultra-Low Leakage Current: 0.1 nA (Typical)

• Ultra-Low ESD Clamping Voltage: 8 V at 16-ATLP (System Side)

• Supports High Speed Interfaces up to 6 Gbps

• Industrial Temperature Range: –40°C to +125°C

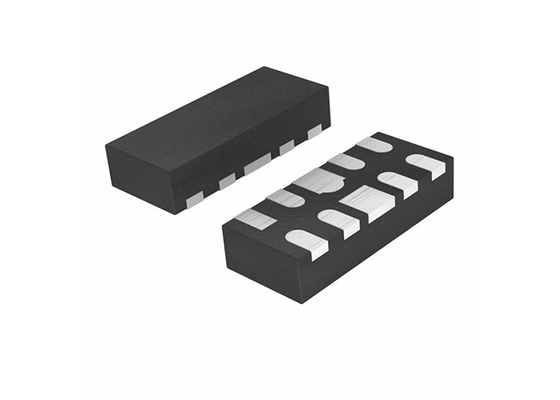

• Industry Standard DQA Package

Applications Of ESD224DQAR

• End Equipment

• Set-Top Boxes

• TV and Monitors

• Laptops and Desktops

• DVD, Blue-ray, Multimedia Players

• Interfaces

• HDMI 2.0/1.4

• Ethernet 10/100/1000 Mbps

• USB 3.0
