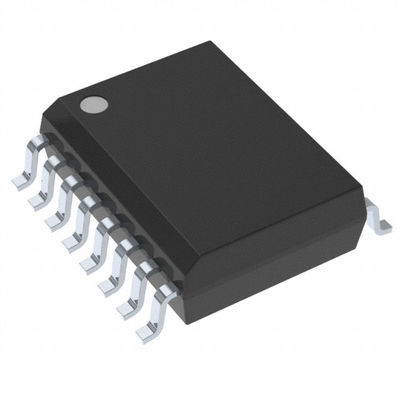

ADUM341E0WBRWZ Integrated Circuit Chip
Quad-channel automotive digital isolators with 5700Vrms isolation rating, based on advanced iCoupler® technology.
Product Overview
The ADUM341E0WBRWZ is a quad-channel digital isolator utilizing iCoupler® technology that combines high-speed CMOS with back-to-back monolithic air core transformer technology. These components deliver exceptional performance and comply with CISPR 32/EN 55032 Class B limits at 5 Mbps. Maximum propagation delay is 10 ns with pulse width distortion under 3 ns at 5V operation, featuring tight channel matching of 3.0 ns maximum.
Key Features
- High common-mode transient immunity: 180 kV/µs typical
- Enhanced robustness to radiated and conducted noise
- Low propagation delay: 6.2 ns typical (10 ns maximum) for 5V operation
- Low dynamic power consumption: <1.65 mA/ch at 1 Mbps
- 2.25 V to 5.5 V level translation capability
- 150 Mbps maximum guaranteed data rate for 5V operation
- High temperature operation: 125°C
- ±8 kV IEC 61000-4-2 ESD protection across isolation barrier
- ±5 kV HBM ESD protection on input/output pins
- Fail-safe high (E1) or low (E0) options
- 16-lead, RoHS compliant SOIC package
Safety & Regulatory Approvals
- DIN EN IEC 60747-17 (VDE 0884-17)
- UL 1577: VISO = 5700 V rms for 1 minute (SOIC RW-16)
- IEC/EN/CSA 62368-1, IEC/CSA 60601-1, IEC/CSA 61010-1
- CQC GB4943.1 certification
Applications
- Serial peripheral interface (SPI) data converter isolation
- RS-485 and CAN FD industrial field bus isolation
- PWM controller signal isolation
- General-purpose multichannel isolation
