NV6134A GaN IC High Performance GaNFast™ Power IC With GaNSense™ Technology
This GaNFast™ power IC integrates a high performance eMode GaN FET with integrated gate drive to achieve unprecedented high-frequency and high efficiency operation. GaNSense™ technology is also integrated which enables real-time, accurate sensing of voltage, current and temperature to further improve performance and robustness not achieved by any discrete GaN or discrete silicon device.
Key Features
GaNFast™ Power IC
- Monolithically-integrated gate drive
- Wide VCC range (10 to 30 V)
- Programmable turn-on dV/dt
- 200 V/ns dV/dt immunity
- 800 V Transient Voltage Rating
- 700 V Continuous Voltage Rating
- Low 260 mΩ resistance
- Zero reverse recovery charge
- 2 MHz operation
GaNSense™ Technology
- Integrated loss-less current sensing
- Short-circuit protection
- Over-temperature protection
- Autonomous low-current standby mode
- Auto-standby mode input

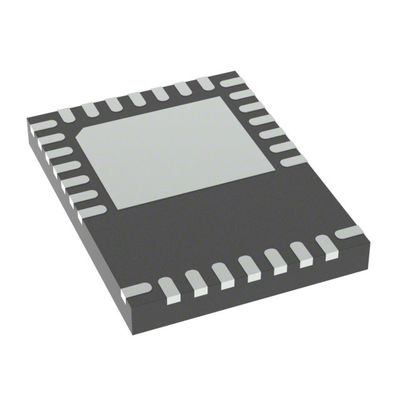

Small, low-profile SMT QFN
- 6 x 8 mm footprint, 0.85 mm profile
- Minimized package inductance
- Large cooling pad
Sustainability
- RoHS, Pb-free, REACH-compliant
- Up to 40% energy savings vs Si solutions
- System level 4kg CO2 Carbon Footprint reduction
Applications
AC-DC, DC-DC, DC-AC • QR flyback, ACF, Buck, Boost, Half bridge, Full bridge, LLC resonant, Class D, PFC • Wireless power, Solar Micro-inverters • LED lighting, TV SMPS, Server, Telecom
