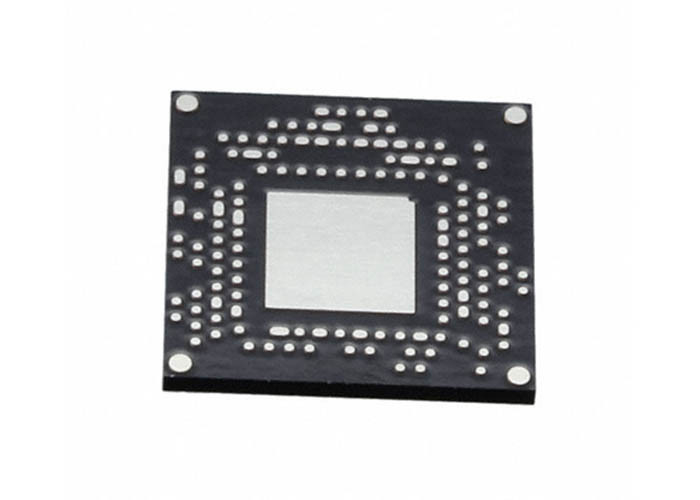

Ethernet IC VSC8514XMK-14 Quad-Port PHY Ethernet Transceivers With QSGMII MAC

Ethernet IC VSC8514XMK-14 Quad-Port PHY Ethernet Transceivers With QSGMII MAC​

Product Description Of VSC8514XMK-14

VSC8514XMK-14 is a low-power Gigabit Ethernet transceiver with copper media interfaces. It has a low electromagnetic interference (EMI) line driver, and integrated line-side termination resistors that conserve both power and printed circuit board (PCB) space.

Specification Of VSC8514XMK-14

Features Of VSC8514XMK-14

• Four integrated 10/100/1000BASE-T Ethernet copper transceivers (IEEE 802.3ab-compliant) with VeriPHY™ cable diagnostics
• QSGMII SerDes MAC interface
• Patented line driver with low EMI voltage mode and integrated line side termination resistors
• HP Auto-MDIX support and forced MDI/MDIX option
• Jumbo frame support up to 16 kB with programmable synchronization FIFOs
• IEEE 802.3bf register support for standardized access to information on data delay between the MDI and xMII interface for a given PHY
