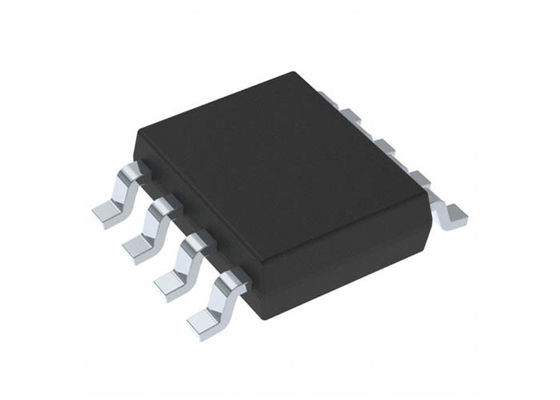

Integrated Circuit Chip TPS54360BDDAR 3.5A Step-Down DC DC Converter 8-PowerSOIC

Integrated Circuit Chip TPS54360BDDAR 3.5A Step-Down DC DC Converter 8-PowerSOIC ​

Product Description Of TPS54360BDDAR

TPS54360BDDAR is a 60V, 3.5A, step-down regulator with an integrated high side MOSFET. Current mode control provides simple external compensation and flexible component selection.

Specification Of TPS54360BDDAR

Features Of TPS54360BDDAR

• 4.5V to 60V (65V Abs Max) Input Range
• 3.5A Continuous Current, 4.5A Minimum Peak Inductor Current Limit
• Current Mode Control DC/DC Converter
• 92mΩ High-Side MOSFET
• High Efficiency at Light Loads with Pulse Skipping Eco-mode™
• Low Dropout at Light Loads with Integrated BOOT Recharge FET
• 146-μA Operating Quiescent Current
• 2-μA Shutdown Current
• 100-kHz to 2.5-MHz Fixed Switching Frequency
• Synchronizes to External Clock
• Adjustable UVLO Voltage and Hysteresis
• Internal Soft Start
• Accurate Cycle-by-Cycle Current Limit
• Thermal, Overvoltage, and Frequency Foldback Protection
• 0.8 V 1% Internal Voltage Reference
• 8-Pin HSOIC with PowerPAD™ Package
• –40°C to 150°C TJ Operating Range
