TPS54360BDDAR Integrated Circuit Chip 3.5A Step-Down DC DC Converter with 4.5V to 60V Input and 100kHz to 2.5MHz Switching Frequency

TPS54360BDDAR Integrated Circuit Chip 3.5A Step-Down DC DC Converter with 4.5V to 60V Input and 100kHz to 2.5MHz Switching Frequency
TPS54360BDDAR Integrated Circuit Chip 3.5A Step-Down DC DC Converter with 4.5V to 60V Input and 100kHz to 2.5MHz Switching Frequency
TPS54360BDDAR Integrated Circuit Chip 3.5A Step-Down DC DC Converter with 4.5V to 60V Input and 100kHz to 2.5MHz Switching Frequency TPS54360BDDAR Integrated Circuit Chip 3.5A Step-Down DC DC Converter with 4.5V to 60V Input and 100kHz to 2.5MHz Switching Frequency TPS54360BDDAR Integrated Circuit Chip 3.5A Step-Down DC DC Converter with 4.5V to 60V Input and 100kHz to 2.5MHz Switching Frequency

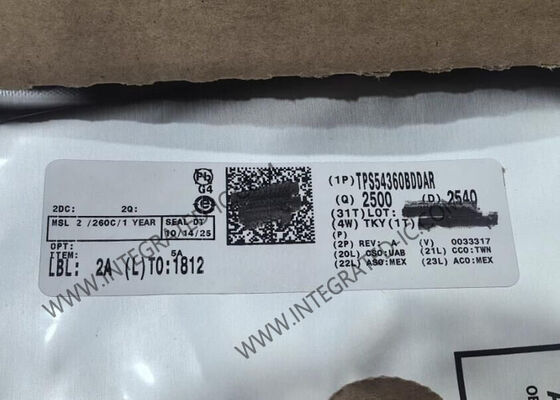

Large Image :  TPS54360BDDAR Integrated Circuit Chip 3.5A Step-Down DC DC Converter with 4.5V to 60V Input and 100kHz to 2.5MHz Switching Frequency

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: TPS54360BDDAR
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: 8-PowerSOIC
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

TPS54360BDDAR Integrated Circuit Chip 3.5A Step-Down DC DC Converter with 4.5V to 60V Input and 100kHz to 2.5MHz Switching Frequency

Description
Part Number: TPS54360BDDAR Output Current: 3.5 A
Switching Frequency: 100 KHz To 2.5 MHz Input Voltage: 4.5 V To 60 V
Number Of Outputs: 1 Output Output Voltage: 800 MV To 58.8 V
Highlight:

3.5A Output Current Integrated Circuit Chip

,

4.5V to 60V Input Voltage DC DC Converter

,

100kHz to 2.5MHz Switching Frequency Step-Down Regulator

TPS54360BDDAR Integrated Circuit Chip - 3.5A Step-Down DC-DC Converter
The TPS54360BDDAR is a 60V, 3.5A step-down regulator featuring an integrated high-side MOSFET. Current mode control enables simple external compensation and flexible component selection for optimal performance.
Product Specifications
FunctionStep-Down
Output ConfigurationPositive
TopologyBuck, Split Rail
Output TypeAdjustable
Number of Outputs1
Voltage - Input (Min)4.5V
Voltage - Input (Max)60V
Voltage - Output (Min/Fixed)0.8V
Voltage - Output (Max)58.8V
Current - Output3.5A
Frequency - Switching100kHz ~ 2.5MHz
Synchronous RectifierNo
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case8-PowerSOIC (0.154", 3.90mm Width)
Supplier Device Package8-SO PowerPad
Key Features
  • 4.5V to 60V (65V Abs Max) Input Range
  • 3.5A Continuous Current, 4.5A Minimum Peak Inductor Current Limit
  • Current Mode Control DC/DC Converter
  • 92mΩ High-Side MOSFET
  • High Efficiency at Light Loads with Pulse Skipping Eco-mode™
  • Low Dropout at Light Loads with Integrated BOOT Recharge FET
  • 146-μA Operating Quiescent Current
  • 2-μA Shutdown Current
  • 100-kHz to 2.5-MHz Fixed Switching Frequency
  • Synchronizes to External Clock
  • Adjustable UVLO Voltage and Hysteresis
  • Internal Soft Start
  • Accurate Cycle-by-Cycle Current Limit
  • Thermal, Overvoltage, and Frequency Foldback Protection
  • 0.8 V 1% Internal Voltage Reference
  • 8-Pin HSOIC with PowerPAD™ Package
  • -40°C to 150°C TJ Operating Range
