AMC1305M25DWR Reinforced Isolated Delta Sigma Modulator Integrated Circuit Chip with 16-bit Resolution and 78k Sampling Rate

AMC1305M25DWR Reinforced Isolated Delta Sigma Modulator Integrated Circuit Chip with 16-bit Resolution and 78k Sampling Rate
AMC1305M25DWR Reinforced Isolated Delta Sigma Modulator Integrated Circuit Chip with 16-bit Resolution and 78k Sampling Rate AMC1305M25DWR Reinforced Isolated Delta Sigma Modulator Integrated Circuit Chip with 16-bit Resolution and 78k Sampling Rate

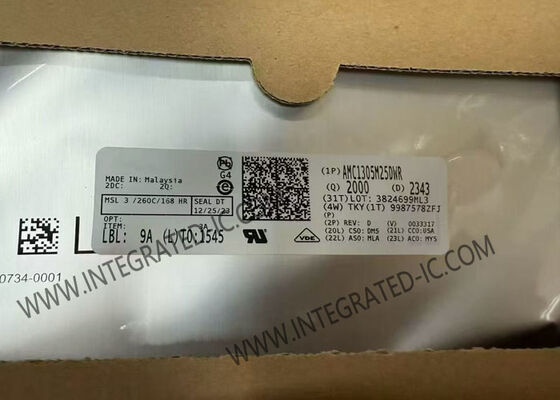

Large Image :  AMC1305M25DWR Reinforced Isolated Delta Sigma Modulator Integrated Circuit Chip with 16-bit Resolution and 78k Sampling Rate

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: AMC1305M25DWR
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: SOIC-16
Delivery Time: 3-5 work days
Payment Terms: TT
Supply Ability: 10000 Pieces per Day
Contact Now

AMC1305M25DWR Reinforced Isolated Delta Sigma Modulator Integrated Circuit Chip with 16-bit Resolution and 78k Sampling Rate

Description
Highlight:

Reinforced Isolated Delta Sigma Modulator

,

16-bit Resolution Integrated Circuit Chip

,

78k Sampling Rate AMC1305M25DWR

AMC1305M25DWR Integrated Circuit Chip Reinforced Isolated Delta Sigma Modulator
The AMC1305M25DWR is a precision delta-sigma (ΔΣ) modulator featuring a capacitive double isolation barrier that provides excellent immunity to magnetic interference. This device is optimized for direct connection to shunt resistors and other low-voltage signal sources, delivering superior DC and AC performance for industrial applications.
Product Specifications
Type Isolated Module
Number of Channels 1
Resolution 16 bits
Sampling Rate 78k per second
Data Interface CMOS, Serial
Voltage Supply Source Analog and Digital
Voltage Supply 3V ~ 5.5V
Operating Temperature -40°C ~ 125°C
Mounting Type Surface Mount
Package / Case 16-SOIC (0.295", 7.50mm Width)
Supplier Device Package 16-SOIC
Key Features
  • Pin-compatible family optimized for shunt-resistor-based current measurements
  • ±50-mV or ±250-mV input voltage ranges
  • CMOS or LVDS digital interface options
  • Excellent DC performance supporting high-precision sensing
  • Offset error: ±50 µV or ±150 µV (max)
  • Offset drift: 1.3 µV/°C (max)
  • Gain error: ±0.3% (max)
  • Gain drift: ±40 ppm/°C (max)
  • Transient immunity: 15 kV/µs (min)
  • External 5-MHz to 20-MHz clock input for system-level synchronization
Applications
  • Shunt-resistor-based current sensing in industrial motor drives
  • Photovoltaic inverters
  • Uninterruptible power supplies
  • Isolated voltage sensing
