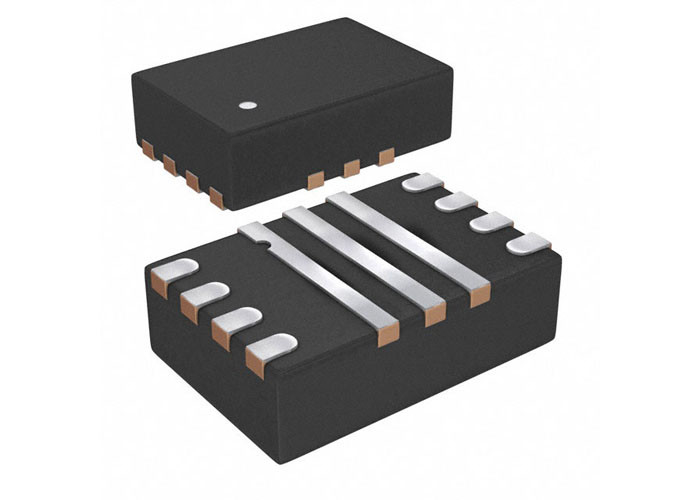

Integrated Circuit Chip TPS62135RGXR High Accuracy 4A Step-Down Converters VQFN-11

Integrated Circuit Chip TPS62135RGXR High Accuracy 4A Step-Down Converters VQFN-11
Integrated Circuit Chip TPS62135RGXR High Accuracy 4A Step-Down Converters VQFN-11
Integrated Circuit Chip TPS62135RGXR High Accuracy 4A Step-Down Converters VQFN-11 Integrated Circuit Chip TPS62135RGXR High Accuracy 4A Step-Down Converters VQFN-11

Large Image :  Integrated Circuit Chip TPS62135RGXR High Accuracy 4A Step-Down Converters VQFN-11

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: TPS62135RGXR
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: VQFN-HR-11
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, Western Union
Contact Now

Integrated Circuit Chip TPS62135RGXR High Accuracy 4A Step-Down Converters VQFN-11

Description
Part Number: TPS62135RGXR Output Voltage: 800 MV To 12 V
Number Of Outputs: 1 Output Switching Frequency: 2.5 MHz
Quiescent Current: 18 UA Input Voltage: 3 V To 17 V

Integrated Circuit Chip TPS62135RGXR High Accuracy 4A Step-Down Converters VQFN-11​



Product Description Of TPS62135RGXR

TPS62135RGXR is high efficiency and easy to use synchronous step-down DC-DC converters, based on the DCS-Control™ Topology.



Specification Of TPS62135RGXR

Function
Step-Down
Output Configuration
Positive
Topology
Buck
Output Type
Adjustable
Number of Outputs
1
Voltage - Input (Min)
3V
Voltage - Input (Max)
17V
Voltage - Output (Min/Fixed)
0.8V
Voltage - Output (Max)
12V
Current - Output
4A
Frequency - Switching
2.5MHz
Synchronous Rectifier
Yes
Operating Temperature
-40°C ~ 125°C (TJ)
Mounting Type
Surface Mount
Package / Case
11-VFQFN
Supplier Device Package
11-VQFN-HR (2x3)



Features Of TPS62135RGXR

  • Output Voltage Accuracy ± 1% (PWM mode)
  • Input Voltage Range: 3 V to 17 V
  • Quiescent Current 18 µA Typ
  • Output Voltage from 0.8 V to 12 V
  • Adjustable Soft-Start
  • Forced PWM or PWM/PFM operation
  • Typical switching frequency of 2.5MHz in forced PWM



Applications Of TPS62135RGXR

  • Standard 12-V Rail Supplies
  • POL for Connected Standby Requirements
  • POL Supply from Single or Multiple Li-Ion Battery
