Integrated Circuit Chip TMC5072-LA General Purpose Bipolar Motor Driver 48-VFQFN

Integrated Circuit Chip TMC5072-LA General Purpose Bipolar Motor Driver 48-VFQFN
Integrated Circuit Chip TMC5072-LA General Purpose Bipolar Motor Driver 48-VFQFN
Integrated Circuit Chip TMC5072-LA General Purpose Bipolar Motor Driver 48-VFQFN Integrated Circuit Chip TMC5072-LA General Purpose Bipolar Motor Driver 48-VFQFN

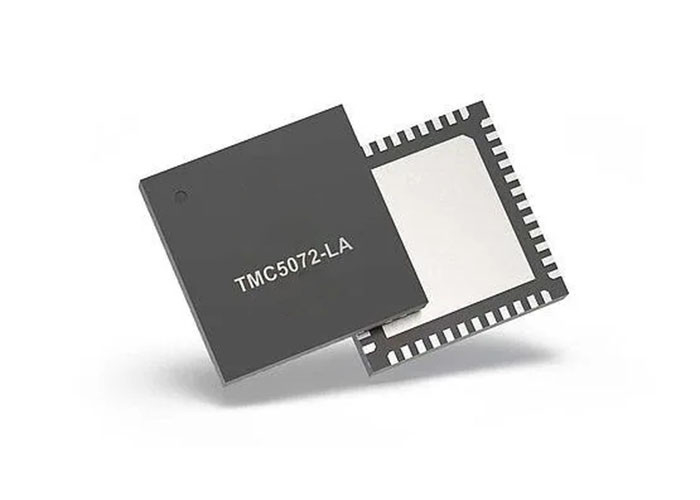

Large Image :  Integrated Circuit Chip TMC5072-LA General Purpose Bipolar Motor Driver 48-VFQFN

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: TMC5072-LA
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: 48-VFQFN
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, Western Union
Contact Now

Integrated Circuit Chip TMC5072-LA General Purpose Bipolar Motor Driver 48-VFQFN

Description
Part Number: TMC5072-LA Motor Type - Stepper: Bipolar
Function: Driver - Fully Integrated, Control And Power Stage Output Configuration: Half Bridge (8)
Interface: SPI, UART Technology: Power MOSFET

  Integrated Circuit Chip TMC5072-LA General Purpose Bipolar Motor Driver 48-VFQFN



Product Description Of TMC5072-LA

TMC5072-LA is a single / dual high performance stepper motor controller and driver IC with serial communication interfaces.



Specification Of TMC5072-LA

Step Resolution

1 ~ 1/256

Applications

General Purpose

Current - Output

1.5A

Voltage - Supply

3V ~ 5.25V

Voltage - Load

5.5V ~ 26V

Operating Temperature

-40°C ~ 125°C (TJ)

Mounting Type

Surface Mount



Features Of TMC5072-LA

  • Two 2-phase stepper motors

  • Drive Capability up to 2x 1.1A coil current (2x 1.5A peak)

  • Parallel Option for one motor at 2.2A (3A peak)

  • Motion Controller with SixPointTM ramp

  • Voltage Range 4.75_ 26V DC

  • SPI & Single Wire UART with special bus ring option

  • Dual Encoder Interface and 2x Ref. Switch input per axis

  • Highest Resolution up to 256 microsteps per full step

  • StealthChopTM for extremely quiet operation and smooth motion

  • SpreadCycleTH highly dynamic motor control chopper

  • DCStepTM load dependent speed control

  • StallGuard2H high precision sensorless motor load detection

  • CoolStepTM current control for energy savings up to 75%

  • Passive Braking and freewheeling mode

  • Full Protection & Diagnostics

  • Compact Size 7x7mm2 QFN48 package



Applications Of TMC5072-LA

  • CCTV, Security

  • Office Automation

  • Antenna Positioning

  • Heliostat Controller

  • Battery powered applications

  • ATM, Cash recycler, POS

  • Lab Automation

  • Liquid Handling

  • Medical

  • Printer and Scanner

  • Pumps and Valves
