Integrated Circuit Chip TMC5072 2-Phase High Performance Bipolar Stepper Motor Driver

Integrated Circuit Chip TMC5072 2-Phase High Performance Bipolar Stepper Motor Driver​

Product Description Of TMC5072

TMC5072 - Dual controller/driver for up to two 2-phase bipolar stepper motor. It combines flexible ramp generators for automatic target positioning with industries’ most advanced stepper motor drivers.

Specification Of TMC5072

Features Of TMC5072

• Two 2-phase stepper motors
• SPI & Single Wire UART with special bus ring option
• Dual Encoder Interface and 2x Ref.-Switch input per axis
• Highest Resolution up to 256 microsteps per full step
• Drive Capability up to 2x 1.1A coil current (2x 1.5A peak)
• Parallel Option for one motor at 2.2A (3A peak)
• Motion Controller with SixPoint™ ramp
• Passive Braking and freewheeling mode

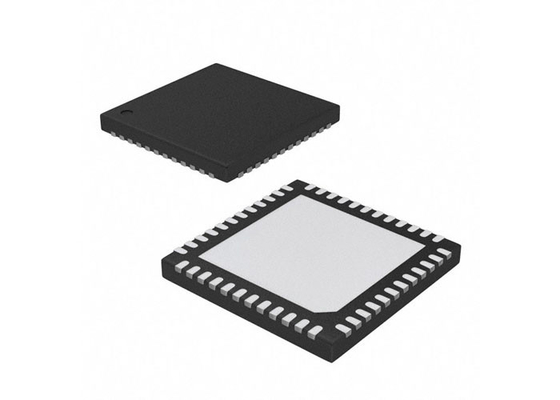

• Compact Size 7x7mm2 QFN48 package

Applications Of TMC5072

• Office Automation
• Heliostat Controller
• Battery powered applications
• Lab Automation
• Printer and Scanner
