LTC4372CDD Low Quiescent Current Ideal Diode Controller IC Chip with Wide Input Voltage Range and Fast Reverse Turn-Off

LTC4372CDD Low Quiescent Current Ideal Diode Controller IC Chip with Wide Input Voltage Range and Fast Reverse Turn-Off
LTC4372CDD Low Quiescent Current Ideal Diode Controller IC Chip with Wide Input Voltage Range and Fast Reverse Turn-Off
LTC4372CDD Low Quiescent Current Ideal Diode Controller IC Chip with Wide Input Voltage Range and Fast Reverse Turn-Off LTC4372CDD Low Quiescent Current Ideal Diode Controller IC Chip with Wide Input Voltage Range and Fast Reverse Turn-Off

Large Image :  LTC4372CDD Low Quiescent Current Ideal Diode Controller IC Chip with Wide Input Voltage Range and Fast Reverse Turn-Off

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: LTC4372CDD
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: Standard package
Delivery Time: 3-5 work days
Payment Terms: TT
Supply Ability: 10000 Pieces per Day
Contact Now

LTC4372CDD Low Quiescent Current Ideal Diode Controller IC Chip with Wide Input Voltage Range and Fast Reverse Turn-Off

Description

LTC4372CDD Integrated Circuit Chip Low Quiescent Current Ideal Diode Controller
Product Description

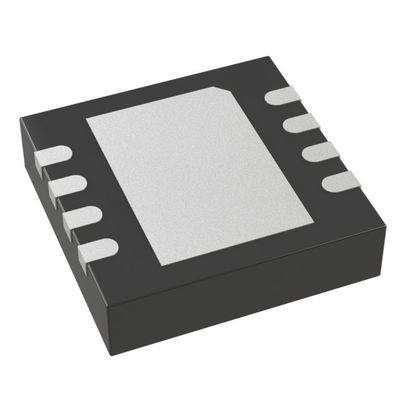

The LTC4372CDD is a low-quiescent-current ideal diode controller housed in a compact 3×3 mm DFN package, designed for multi-battery redundant power distribution, servo and sensor power supply chains in humanoid robots. By replacing Schottky diodes with external N-MOSFETs, it significantly reduces forward conduction losses and heat generation.

With an operating quiescent current of just 5μA and a turn-off current of 0.5μA, it is well-suited to the intermittent motion and long standby scenarios typical of robots, effectively extending the system's overall battery life.

Supports a wide input voltage range of 2.5V to 80V, compatible with both 48V high-voltage bus systems and low-voltage sensor power supplies in robots. Features an ultra-fast reverse turn-off capability of ≤1.5μs, rapidly blocking reverse current during battery power loss or servo start/stop surges to protect the battery, driver ICs and vision sensors.

It can drive back-to-back MOSFETs to achieve surge suppression and load switching. Combined with a reverse voltage rating of -28V, it withstands power supply faults caused by reversed robot cable connections and vibrations, thereby enhancing the system's power supply stability and safety. Its ultra-compact package saves space on the robot's confined power distribution board.

Key Features
  • Reduces Power Dissipation by Replacing a Power Schottky Diode
  • Low Quiescent Current: 5μA Operating
  • Wide Operating Voltage Range: 2.5V to 80V
  • Reverse Supply Protection to -28V
  • No TVS Input Clamps Required
  • High Side External N-Channel MOSFET Drive
  • Drives Back-to-Back MOSFETs for Inrush Control and Load Switching
  • Shutdown Input for ON/OFF Control
  • Fast Reverse Current Turn-Off within 1.5μs
  • 8-Lead MSOP and 3mm × 3mm DFN Packages
Applications
  • Automotive Battery Protection
  • Redundant Power Supplies
  • Portable Instrumentation
  • Solar Powered Systems
  • Energy Harvesting Applications
  • Supply Holdup
  • Humanoid Robots
