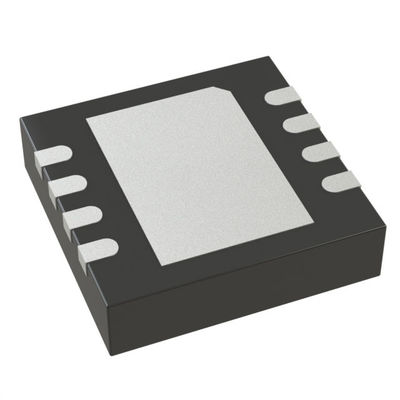

LTC4372IDD N-Channel Ideal Diode Controller with Ultra-low Power Loss Ultra-fast Reverse Current Protection and Ultra-wide Voltage Range

Extends robot runtime and simplifies thermal management. Real-time control of external N-MOS forward voltage drop to ≤30mV significantly reduces heat generation in high-current paths compared to the 0.3V voltage drop of Schottky diodes. Operating quiescent current of just 5 μA and shutdown leakage current of 0.5 μA make it ideal for robots' intermittent motion and standby/sleep modes, reducing unnecessary battery drain. No additional heat sinks required, facilitating lightweight structural design.

Safeguards servo and main control hardware. MOSFET switches off within 0.5-1.5 μs when reverse current occurs. During robot battery insertion/removal, power supply short circuits, or instantaneous switching between parallel power supplies, high-voltage reverse current is rapidly blocked, preventing damage to joint servo motors, vision processing boards, and driver chips. Supports reverse voltage rating of -28 V, withstanding negative voltage spikes during motion.

Wide input range of 2.5V-80V perfectly matches humanoid robots' 24V power batteries, 48V high-voltage bus bars, and 5-12V sensor/auxiliary control power supplies. A single chip can handle both power and low-voltage distribution protection requirements.

Multiple chips connected in parallel form an OR power supply architecture. When the robot's main battery runs low, the system switches seamlessly to a backup battery without interruption, ensuring motion posture and gait control do not experience frame drops or shutdowns. Can drive back-to-back N-MOS transistors, providing both inrush current suppression and load on/off control, mitigating high inrush currents from servo start-up impacting the bus.

DFN3×3 micro surface-mount package occupies minimal PCB area, making it suitable for confined power distribution board layouts in hands, legs, and torso. Wide temperature range of -40°C to 85°C adapts to heat generated by prolonged continuous robot movement and low-temperature outdoor operating environments.
