Integrated Circuit Chip MC33FS6523NAE Safety Power System Basis Chip With CAN FD And LIN Transceivers

Integrated Circuit Chip MC33FS6523NAE Safety Power System Basis Chip With CAN FD And LIN Transceivers

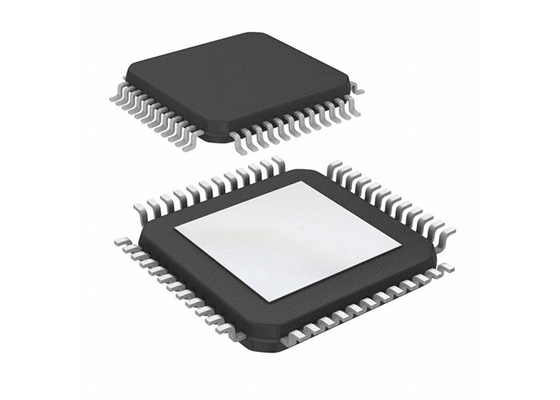

Product Description Of MC33FS6523NAE

MC33FS6523NAE devices is a multi-output, power supply, integrated circuit, including CAN Flexible Data (FD) and/or LIN transceivers, dedicated to the automotive market.


Specification Of MC33FS6523NAE


Features Of MC33FS6523NAE

• Battery voltage sensing and MUX output pin

• Highly flexible SMPS pre-regulator, allowing two topologies: non-inverting buck-boost and standard buck

• Family of devices to supply MCU core from 1.0 V to 5.0 V, with SMPS (0.8 A, 1.5 A or 2.2 A) or LDO (0.5 A)

• Linear voltage regulator dedicated to auxiliary functions, or to sensor supply (VCCA tracker or independent), 5.0 V, or 3.3 V

• Linear voltage regulator dedicated to MCU Analog/Digital (A/D) reference voltage or I/Os supply (VCCA), 5.0 V, or 3.3 V

• 3.3 V keep alive memory supply available in low-power mode

• Long duration timer, counting up to 6 months with 1.0 s resolution

• Multiple wake-up sources in low-power mode: CAN, LIN, IOs, LDT

• Five configurable I/Os

Applications Of MC33FS6523NAE

• Drive Train Electrification (BMS, Hybrid EV and HEV, Inverter, DC-DC, Alterno Starter)

• Drive Train - Chassis and Safety (Active Suspension, Steering, Safety Domain Gateway)

• Power Train (EMS, TCU, Gear Box)

• ADAS (LDW, Radar, Sensor Fusion Safety area)

• On board charger

• Motor control
