Integrated Circuit Chip LTC3894EFE 150V Low IQ Step Down DC DC Controller 20-TSSOP

Integrated Circuit Chip LTC3894EFE 150V Low IQ Step Down DC DC Controller 20-TSSOP
Integrated Circuit Chip LTC3894EFE 150V Low IQ Step Down DC DC Controller 20-TSSOP
Integrated Circuit Chip LTC3894EFE 150V Low IQ Step Down DC DC Controller 20-TSSOP Integrated Circuit Chip LTC3894EFE 150V Low IQ Step Down DC DC Controller 20-TSSOP

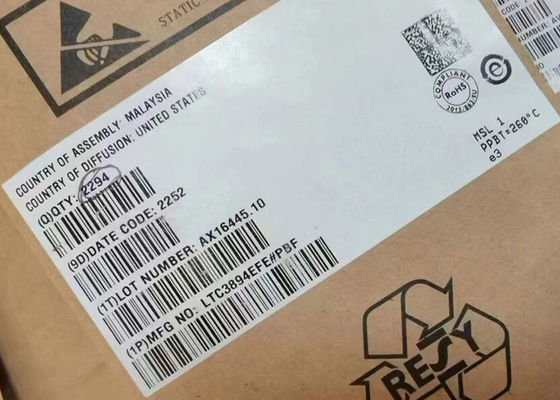

Large Image :  Integrated Circuit Chip LTC3894EFE 150V Low IQ Step Down DC DC Controller 20-TSSOP

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: LTC3894EFE
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: 20-TSSOP
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, Western Union
Contact Now

Integrated Circuit Chip LTC3894EFE 150V Low IQ Step Down DC DC Controller 20-TSSOP

Description
Part Number: LTC3894EFE Switching Frequency: 50 KHz To 850 KHz
Number Of Outputs: 1 Output Duty Cycle - Max: 100 %
Output Voltage: 800 MV To 60 V Output Current: 10 A

Integrated Circuit Chip LTC3894EFE 150V Low IQ Step Down DC DC Controller 20-TSSOP​

Product Description Of LTC3894EFE

LTC3894EFE is a high voltage step-down DC/DC switching regulator controller. It drives a P-channel power MOSFET switch allowing 100% duty cycle operation. It enables a low part count, simple, and robust solution for high reliability, high voltage applications.


Specification Of LTC3894EFE

Output Type
Transistor Driver
Function
Step-Down
Output Configuration
Positive
Topology
Buck
Number of Outputs
1
Output Phases
1
Voltage - Supply (Vcc/Vdd)
4.5V ~ 150V
Frequency - Switching
50kHz ~ 850kHz
Duty Cycle (Max)
100%
Synchronous Rectifier
Yes
Clock Sync
Yes
Control Features
Current Limit, Enable, Frequency Control, Power Good, Soft Start
Operating Temperature
-40°C ~ 125°C (TJ)
Mounting Type
Surface Mount
Package / Case
20-TSSOP (0.173", 4.40mm Width), 16 Leads, Exposed Pad
Supplier Device Package
20-TSSOP-EP


Features Of LTC3894EFE

  • Wide Operating VIN Range: 4.5V to 150V
  • Wide VOUT Range: 0.8V to 60V
  • 9μA IQ when Regulating 48VIN to 3.3VOUT
  • 16μA IQ when Regulating 12VIN to 3.3VOUT
  • Very Low Dropout Operation: 100% Duty Cycle
  • Adjustable Input Overvoltage Lockout
  • Programmable PGOOD Undervoltage Monitor
  • RSENSE or Inductor DCR Current Sensing
  • Selectable High Efficiency Burst Mode® Operation or Pulse-Skipping Mode at Light Loads
  • Programmable Fixed Frequency: 50kHz to 850kHz
  • Phase-Lockable Frequency: 75kHz to 800kHz
  • Internal Fixed Soft-Start and External Programmable Soft-Start or Voltage Tracking
  • Strong MOSFET Gate Driver with Selectable Undervoltage Lockout Thresholds
  • Optional External NMOS for Gate Driver Bias in High Power Applications



Applications Of LTC3894EFE

  • Automotive and Industrial Power Systems
  • Telecommunication Power Systems
  • Distributed Power Systems
