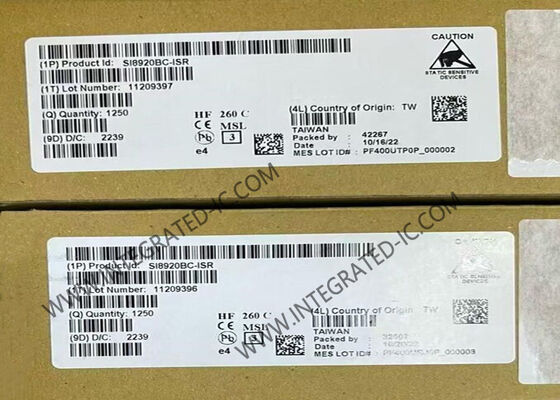

SI8920BC-ISR Galvanically Isolated Amplifier IC with Low Voltage Differential Input for Current Shunt Measurement

The Si8920 is a galvanically isolated analog amplifier. The low-voltage differential input is ideal for measuring voltage across a current shunt resistor or for any place where a sensor must be isolated from the control system. The output is a differential analog signal amplified by either 8.1x or 16.2x.

• Low voltage differential input
• ±100 mV and ±200 mV options
• Low signal delay: 0.75 µs
• Input offset: 0.2 mV
• Gain error: <0.5%
• Excellent drift specifications
• 1 µV/°C offset drift
• 10 ppm/°C gain drift
• Nonlinearity: 0.025% full-scale
• Low noise: 0.10 mVrms over 100 kHz bandwidth
• High common-mode transient immunity: 75 kV/µs
• Compact packages
• 16-pin wide body SOIC
• 8-pin surface mount DIP
• -40 to 125 °C
• AEC-Q100
• Automotive-grade OPNs available
• AIAG compliant PPAP documentation support
• IMDS and CAMDS listing support

• Industrial Applications
  • Industrial and renewable energy inverters
  • AC, Brushless, and DC motor controls and drives
  • Variable speed motor control in consumer white goods
  • Isolated switch mode and UPS power supplies
• Safety Regulatory Approvals
  • UL 1577 recognized
  • Up to 5000 Vrms for 1 minute
  • CSA component notice 5A approval
  • IEC 60950-1 (reinforced insulation)
  • VDE certification conformity
  • VDE0884 Part 10 (basic/reinforced insulation)
  • CQC certification approval
  • GB4943.1
• Automotive Applications
  • Hybrid and EV traction inverters
  • Onboard chargers
  • Charging pedestals
