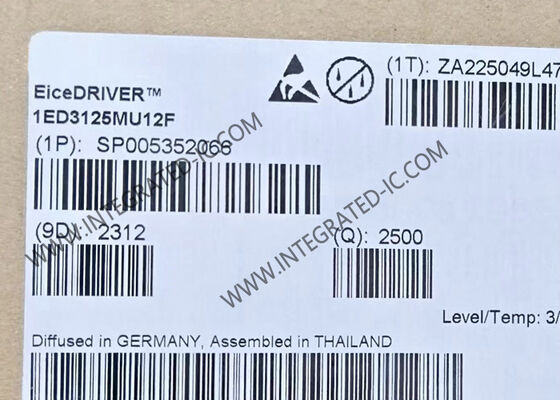

1ED3125MU12F Integrated Circuit Chip 3000Vrms 1 Channel Gate Driver IC in SOIC8 Package

1ED3125MU12F is a single-channel 3.0 kV (rms) isolated gate driver IC with active Miller clamp or separate output.

• Single channel isolated gate driver
• For up to 2300 V Si & SiC switches
• 2300 V functional offset voltage capable
• Galvanically isolated coreless transformer
• 10 A typical sink & source peak output
• 40 V absolute maximum output voltage
• 90 ns propagation delay
• High CMTI >200 kV/μs
• Active Miller clamp
• Short-circuit clamping
• DSO-8 150 mil narrow-body package
• UVLO protection with hysteresis

• EV charging
• DIN rail power supply solutions
• Photovoltaic systems
• 1-phase string inverter solutions
• Server power supply units (PSU)
• Intermediate Bus Converter (IBC)
• Edge computing
• Motor control
• Uninterruptible power supplies (UPS)

• 15+ years experience in electronic components
• Secure ordering process
• Excellent customer feedback
• Delivery date guaranteed
• 100% low price guarantee
• Export to 108 countries with 99.9% customer satisfaction rate
