Wireless Communication Module QCA-9994-0-156DRQFN-MT-00-0 Wave-2 802.11ac Radio

Wireless Communication Module QCA-9994-0-156DRQFN-MT-00-0 Wave-2 802.11ac Radio

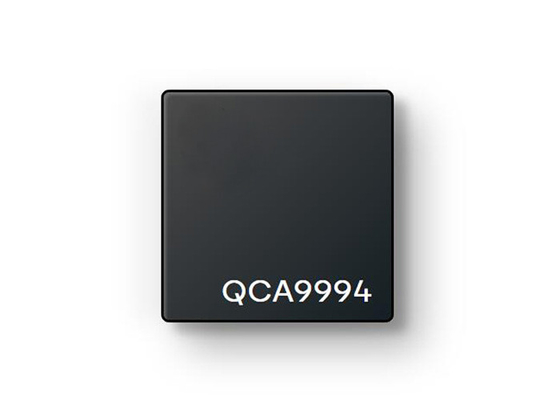

Product Description Of QCA-9994-0-156DRQFN-MT-00-0

QCA-9994-0-156DRQFN-MT-00-0 is a Wave-2 802.11ac radio that enables premium Wi-Fi access points to support more devices and more demanding applications in the enterprise and carrier hotspots. The dual-band, 4x4 solution delivers peak data rates up to 1.7 Gbps, and uses Multi-User MIMO to maintain faster connections on increasingly crowded networks. The QCA9994 also supports 160MHz and 80+80MHz channels to double the capacity at close range.

Features Of QCA-9994-0-156DRQFN-MT-00-0

Wi-Fi
Peak Speed: Up to 1.733 Gbps
Generation: Wi-Fi 4, Wi-Fi 5
Standards: 802.11ac, 802.11a, 802.11b, 802.11g, 802.11n
Spectral Bands: 2.4 GHz, 5 GHz
Channels: 160 MHz, 20 MHz, 80 MHz, 40 MHz
MIMO Configuration: 4x4
Spatial Streams: Up to 4
Encryption: AES-CCMP, AES-GCMP
Security: WPA, WPA2, WEP, TKIP, WPS, WAPI
Features: TxBF, MU-MIMO, Wi-Fi SON
Interfaces
Supported Interfaces: I²C, UART, PCIe 2.0, SPI, JTAG
Programmable I/Os: 35
Layers: MAC, PHY
PCIe - Specification Version: PCIe 2.0
