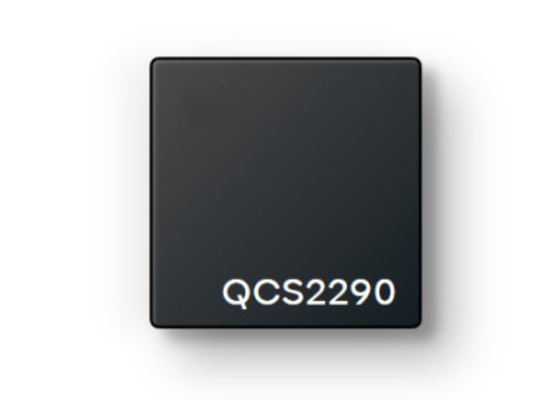

IoT Chip QCS-2290-0-NSP752-MT-00-0 Dual-Channel System On Chip QFN Package

IoT Chip QCS-2290-0-NSP752-MT-00-0 Dual-Channel System On Chip QFN Package
IoT Chip QCS-2290-0-NSP752-MT-00-0 Dual-Channel System On Chip QFN Package IoT Chip QCS-2290-0-NSP752-MT-00-0 Dual-Channel System On Chip QFN Package

Large Image :  IoT Chip QCS-2290-0-NSP752-MT-00-0 Dual-Channel System On Chip QFN Package

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: QCS-2290-0-NSP752-MT-00-0
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: QFN
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, Western Union

IoT Chip QCS-2290-0-NSP752-MT-00-0 Dual-Channel System On Chip QFN Package

Description
Part Number: QCS-2290-0-NSP752-MT-00-0 Clock Speed: Up To 2 GHz
Memory Speed: 1804 MHz, 933 MHz Satellite Systems: QZSS, Galileo, Beidou, SBAS, GLONASS, NavIC, GPS
Highlight:

QFN Package IoT Chip

,

Dual-Channel System On Chip

,

QCS-2290-0-NSP752-MT-00-0

IoT Chip QCS-2290-0-NSP752-MT-00-0 Dual-Channel System On Chip QFN Package



Product Description Of QCS-2290-0-NSP752-MT-00-0

QCS-2290-0-NSP752-MT-00-0 is robust entry-level offering, enabling reliable performance and power-conservation with upgraded features and memory support for low power consumption in its tier. Equipped with the Cortex A53 CPU architecture, the entry-level application processor is a cost-effective solution, delivering greater performance, higher graphics capabilities, better quality images, and improved power performance.This application processor is well-suited for, retail point-of-sale (POS), industrial handheld, tracking and camera applications.



Features Of QCS-2290-0-NSP752-MT-00-0

  • Customized 64-bit Arm Cortex-A53 quad-core applications processor at up to 2.0 GHz

  • Dedicated DSP shared between sensor core and low-power audio subsystem

  • Adreno™ GPU 702 @ 845 MHz, 3D graphics accelerator with 64-bit addressing

  • Dual-channel non-PoP high-speed memory

  • LPDDR4x SDRAM designed for 1804 MHz clock (2 × 16 bit)

  • LPDDR3 SDRAM designed for 933 MHz clock (1 × 32 bit)

  • Universal Bandwidth Compression (UBWC) with GPU

  • Display support: HD+, 720 × 1680 at 60 Hz, 10 bit end-to-end, and up to four hardware layer composition. Features Low-Power Picture Enhancement and True Palette Display

  • One 4-lane DSI D-PHY 1.2 at 1.5 Gbps per lane, split link supported

  • 2x ISP (13 MP + 13 MP or 25 MP) at 30 fps ZSL

  • Two 4-lane CSIs (4/4 or 4/2/1) D-PHY 1.2 at 2.5 Gbps per lane or C-PHY 1.0 at 10 Gbps (3.42 Gbps/trio)

  • Support for USB 3.1 Type-C/Micro USB

  • Always-on subsystem with RPM for power management

  • Long lifecycle support for hardware and software



Applications Of QCS-2290-0-NSP752-MT-00-0

  • Retail Point-of-Sale (POS)

  • Industrial Handheld

  • Asset Tracking

  • Camera



FAQ

Q: Are your products original?
A: Yes, all products are original, new original import is our purpose.
Q: Which Certificates do you have?
A: We are ISO 9001:2015 Certified Company and member of ERAI.
Q: Can you support small quantity order or sample?Is the sample free?
A: Yes,we support sample order and small order.Sample cost is different according to your order or project.
Q: How to ship my order? Is it safe?
A: We use express to ship,such as DHL,Fedex,UPS,TNT,EMS.We can also use your suggested forwarder.Products will be in good packing and ensure the safety and we are responsible to product damage to your order.
Q: What about the lead time?
A: We can ship stock parts within 5 working days.If without stock,we will confirm lead time for you based on your order quantity
