TEF8105EN/N1 Fully-Integrated 77GHz Single-Chip Automotive FMCW Radar Transceiver

TEF8105EN/N1 Fully-Integrated 77GHz Single-Chip Automotive FMCW Radar Transceiver

Product Description Of TEF8105EN/N1

TEF8105EN/N1 Car Radar transceiver is a single-chip automotive FMCW radar transceiver for short-range, medium-range and long-range RADAR applications, covering the full carRADAR frequency band from 76 GHz to 81 GHz.

Specification Of TEF8105EN/N1

Features Of TEF8105EN/N1

• Fully integrated RFCMOS Radar Transceiver for 76-81 GHz

• 3 TX (w/BPSK), 4 RX Channels

• Optimized for Fast Chirp Modulation

• Support for 2 GHz bandwidth, 4 GHz with chirp stitching

• Automotive junction Temperature Range -40°C up to 135°C

• Support cascading of TEF810X devices for Imaging Radar

• CSI-2, CIF, and LVDS Interface

• Developed in accordance with ISO 26262 SEoOC methodology. Supporting ASIL B applications

• Built-in functional safety monitoring circuit

• Low power dissipation < 1.2 W

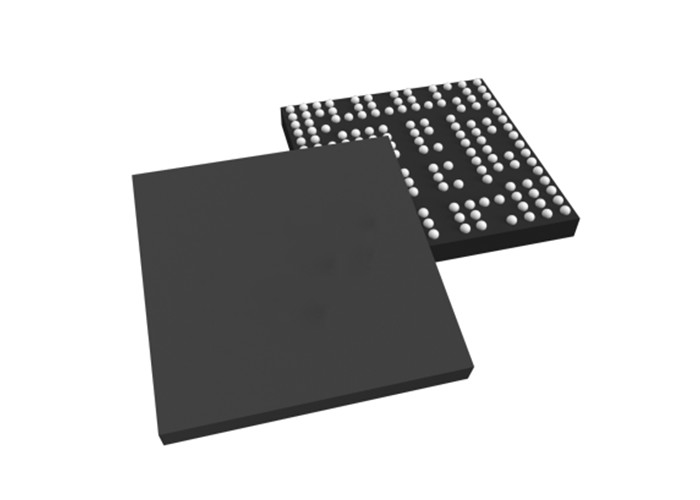

• Very small footprint : 7.5mm x 7.5mm eWLB package with 15 x 15 sized Ball Grid Array (BGA)

Applications Of TEF8105EN/N1

• Front-side of car:

• Autonomous Emergency Braking (AEB)

• Adaptive Cruise Control (ACC)

• Narrow path assist

• Lateral collision avoidance

• Side pre-crash

• Traffic jam assist

• Rear-Side of car:

• Lane Change Assist (LCA)

• Blind Spot Detection (BSD)

• Rear Cross Traffic Alert (RCTA)

• Rear pre-crash

• Parking Assist (PA)
