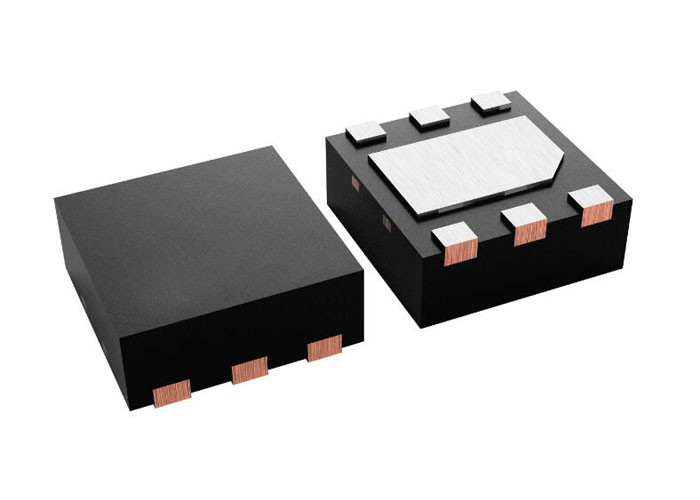

Integrated Circuit Chip TPS72015QDRVRQ1 RF Low Dropout Linear Regulator IC WDFN-6

Integrated Circuit Chip TPS72015QDRVRQ1 RF Low Dropout Linear Regulator IC WDFN-6​

Product Description Of TPS72015QDRVRQ1

TPS72015QDRVRQ1 is dual-rail, low-dropout linear regulators (LDOs), it offers outstanding ac performance (PSRR, load and line transient response) and consume a very low quiescent current of 38 μA.

Specification Of TPS72015QDRVRQ1

Features Of TPS72015QDRVRQ1

• Input Voltage Range: 1.1 V to 4.5 V
• Output Voltage Range: 0.9 V to 3.6 V
• High-Performance LDO: 350 mA
• Low Quiescent Current: 38 μA
• Excellent Load Transient Response: ±15 mV for ILOAD = 0 mA to 350 mA in 1μs
• Low Noise: 48 μVRMS (10 Hz to 100 kHz)
• 80-dB VIN PSRR (10 Hz to 10 kHz)
• 70-dB VBIAS PSRR (10 Hz to 10 kHz)
• Fast Start-Up Time: 140 μs
• Built-In Soft-Start With Monotonic VOUT Rise and Start-Up Current Limited to 100 mA + ILOAD
• Overcurrent and Thermal Protection
• Low Dropout: 110 mV at ILOAD = 350 mA
• Stable With a 2.2-μF Output Capacitor
• Package: 2.00 mm × 2.00 mm, 6-Pin WSON

Applications Of TPS72015QDRVRQ1

• Camera Modules
• FPD Link Power
• Automotive Infotainment
• USB HUB Power
