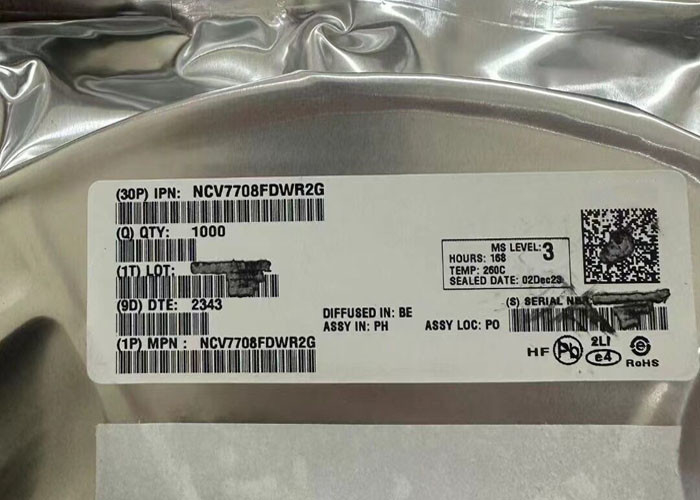

Integrated Circuit Chip NCV7708FDWR2G 500mA Double Hex Half Bridge Driver 28-SOIC

Integrated Circuit Chip NCV7708FDWR2G 500mA Double Hex Half Bridge Driver 28-SOIC​

Product Description Of NCV7708FDWR2G

NCV7708FDWR2G is a fully protected Hex−Half Bridge−Driver designed specifically for automotive and industrial motion control applications. The six low and high side drivers are freely configurable and can be controlled separately. This allows for high side, low side, and H−Bridge control. H−Bridge control provides forward, reverse,brake, and high impedance states. The drivers are controlled via a standard SPI interface.

Specification Of NCV7708FDWR2G

Features Of NCV7708FDWR2G

• Ultra Low Quiescent Current Sleep Mode
• Six Independent High−Side and Six independent Low−Side Drivers
• Integrated Freewheeling Protection (LS and HS)
• Internal Upper and Lower Clamp Diodes
• Configurable as H−Bridge Drivers
• RDS(on) = 0.6 (typ)
• 5MHz SPI Control
• SPI Valid Frame Detection
• Compliance with 5V and 3.3V Systems
• Overvoltage Lockout
• Undervoltage Lockout
• Fault Reporting
• Current Limit
• Overtemperature Protection

Applications Of NCV7708FDWR2G

• Automotive
• Industrial
• DC Motor Management
